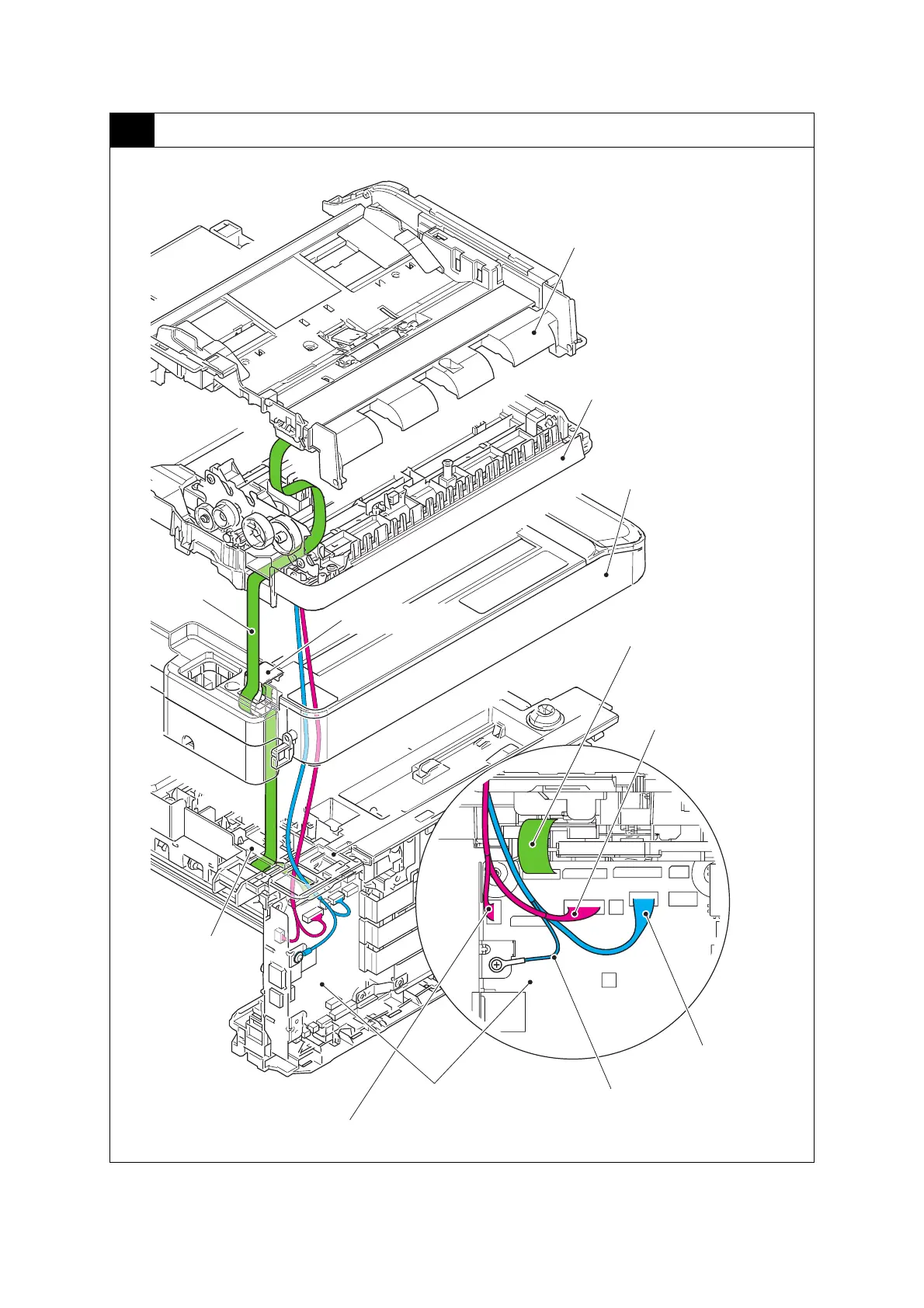

12 ADF unit - Main PCB ASSY

Harness colors are subject to change for some reason.

Upper document chute ASSY

Lower document chute ASSY

Document Scanner unit

Second side CIS flat cable

Second side document scanning

position sensor PCB harness (BL)

ADF motor

harness (RD)

Main PCB ASSY

ADF FFC holder

Second side CIS

flat cable

FFC holder ASSY

ADF sensor harness (WH)

ADF FG harness (GN)
