Brother MFC-7380

3-33
Confidential
<For models with handset>

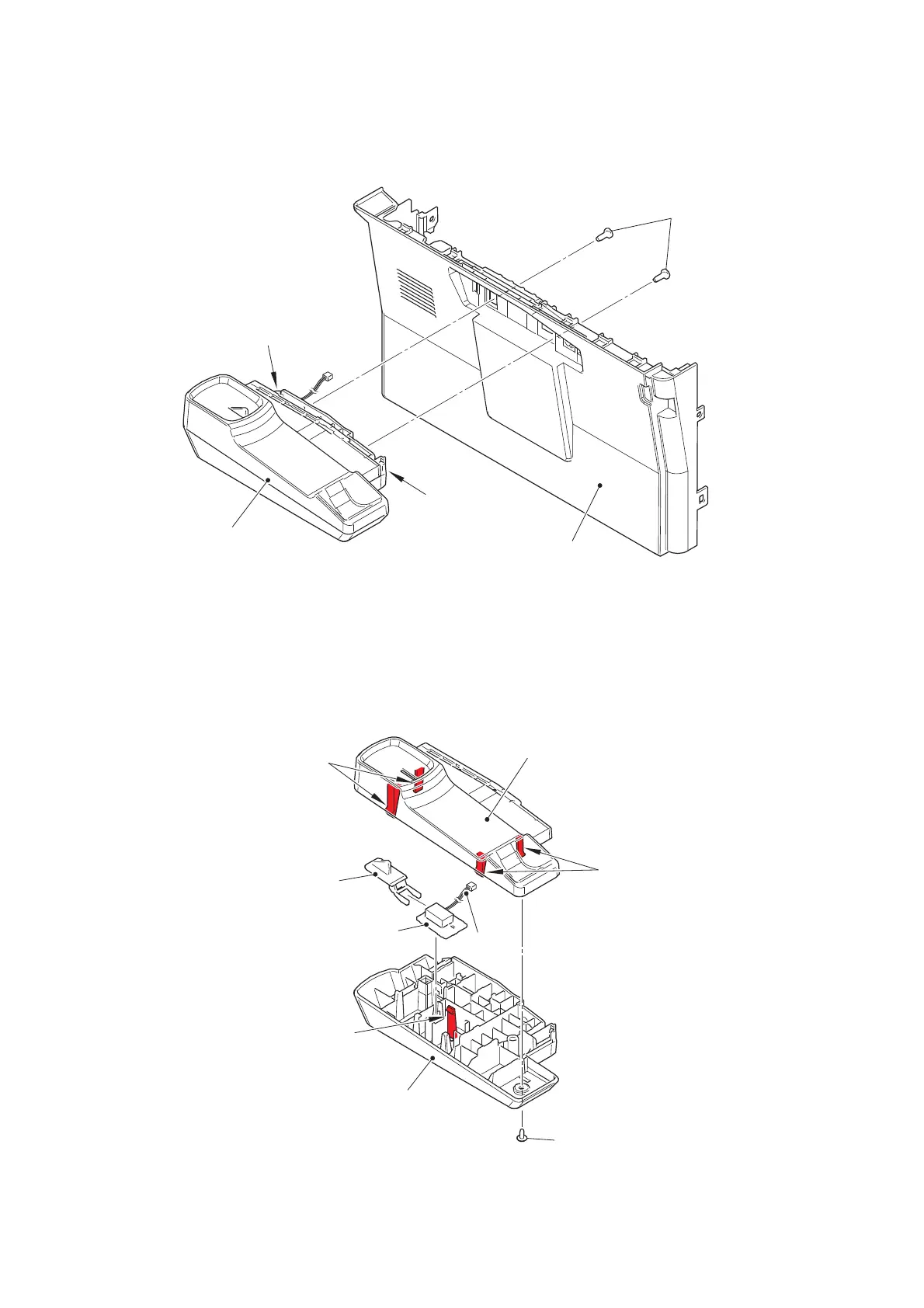

(4) Remove the two taptite bind B M4x12 screws. Release the hooks to remove the handset
holder ASSY from the side cover L.
Fig. 3-19
Harness routing: Refer to “11. Hook switch PCB ASSY”.
(5) Remove the taptite cup B M3x8 screw. Release the hooks A to remove the upper
handset holder from the lower handset holder.
(6) Release the hook harness from the securing fixtures. Release the hook B to remove the
hook switch PCB ASSY from the lower handset holder.
(7) Remove the actuator hook from the hook switch PCB ASSY.
Fig. 3-20
Harness routing: Refer to “11. Hook switch PCB ASSY”.
Taptite bind B M4x12
Handset holder ASSY
Hook
Hook
Side cover L
Upper handset holder
Hooks A
Hooks A
Actuator hook
Hook switch PCB ASSY
Hook B
Lower handset holder
Taptite cup B M3x8
Hook
harness
