Brother MFC-7380

To Next Page

To Previous Page

3-66

Confidential

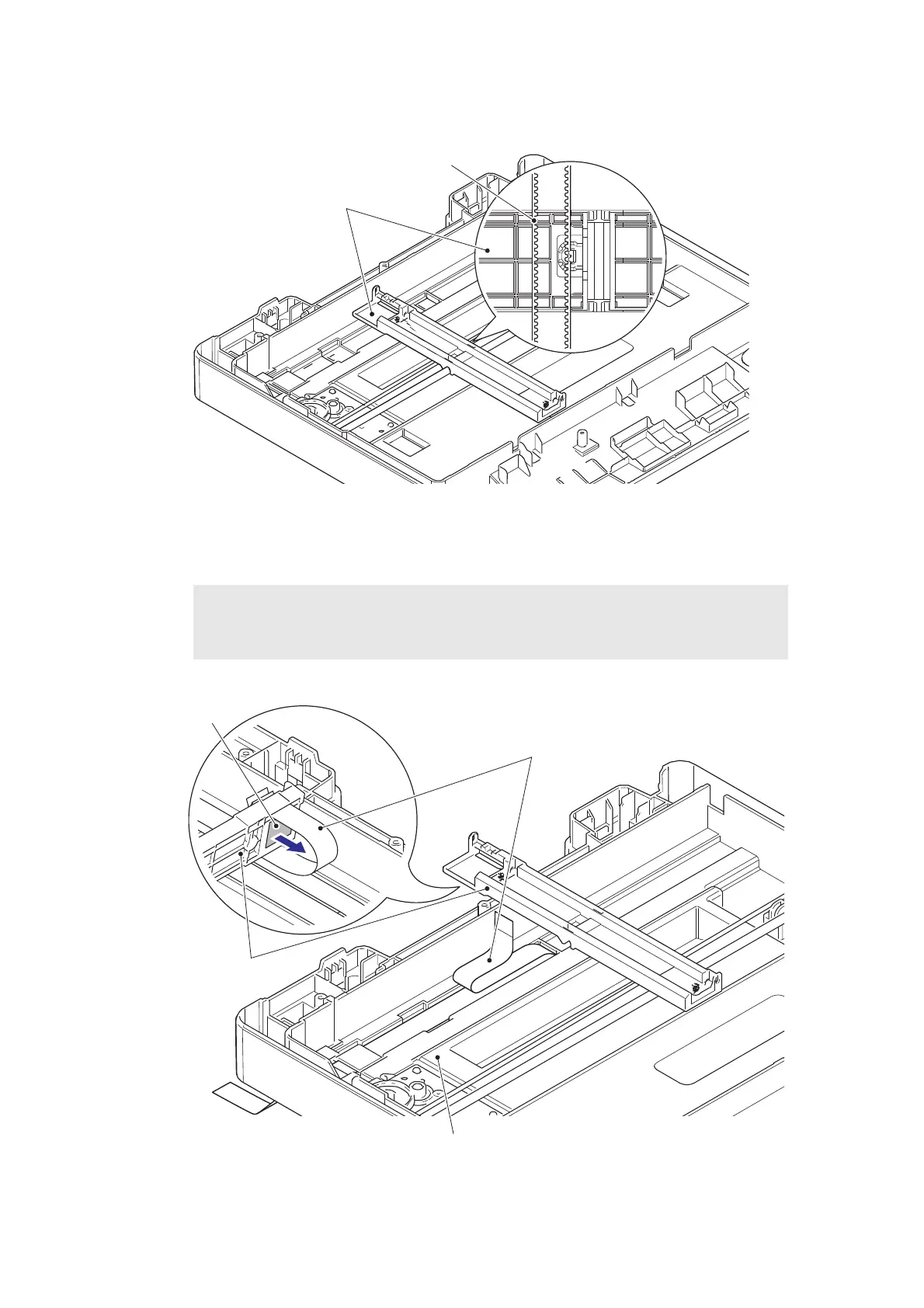

(6) Remove the CIS carriage from the CIS drive belt.

Fig. 3-61

(7) Remove the first side CIS flat cable attached on the back of the CIS carriage from the

double-sided tape.

(8) Remove the first side CIS flat cable from the document scanner bottom cover ASSY.

Fig. 3-62

Note:

• Be sure to replace the double-sided tape with a new one, after taking off the first

side CIS flat cable from the double-sided tape.

CIS carriage

CIS drive belt

First side CIS flat cable

CIS carriage

Double-sided tape

Document scanner bottom cover ASSY
