(4) Remove the two taptite pan B M4x14 screws, and remove the fuser unit.

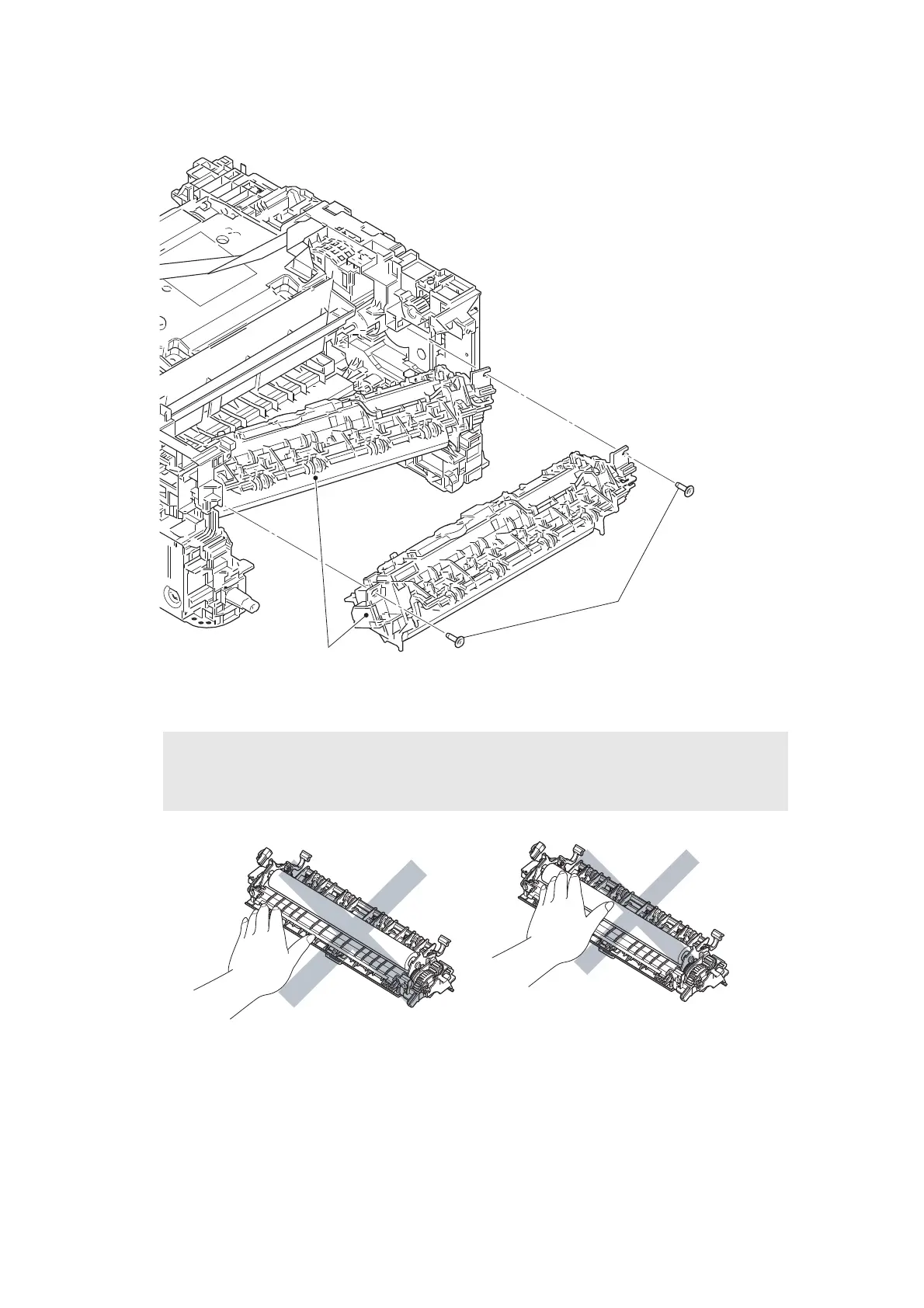

Fig. 3-74
Fig. 3-75
Note:
• DO NOT apply a physical impact or vibration to the fuser unit.
• DO NOT touch the rollers and electrodes to prevent breakage of the fuser unit.
Taptite pan B M4x14
Fuser unit
<Back side>
