Brother MFC-7380

To Next Page

To Previous Page

3-81

Confidential

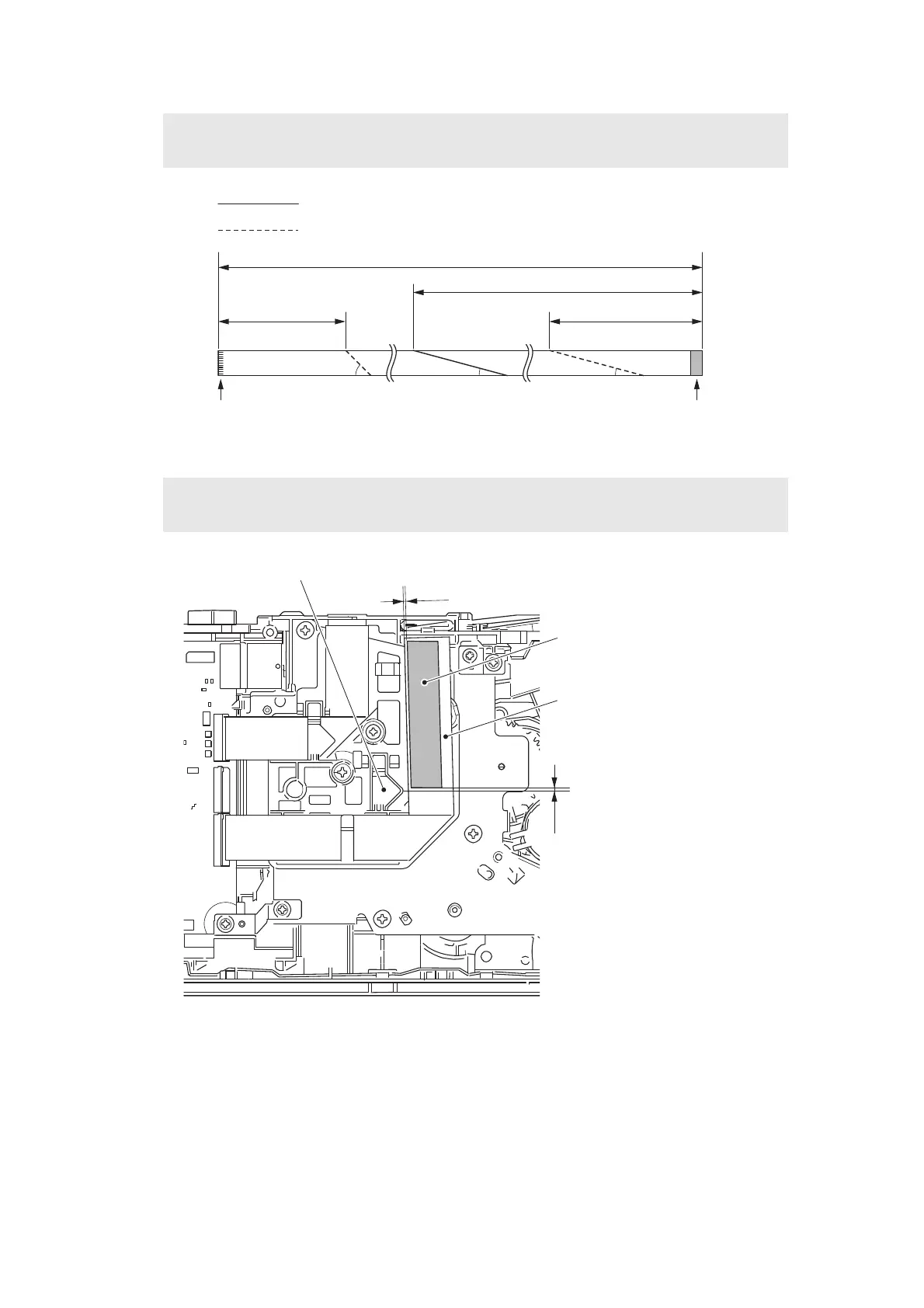

Fig. 3-80

Fig. 3-81

Assembling Note:

• Fold the HVPS flat cable at the positions described below.

Assembling Note:

• Attach the flat cable sponge to the location shown in the figure below.

Mountain fold

Valley fold

590

10 mm

297

1 mm

133

1 mm

15°15°45°

1111 mm

Electrode Reinforcing plate

Main PCB side HVPS side

03 mm from triangle vertex

0 to 2 mm from flat cable edge

Flat cable sponge

HVPS flat cable

Flat cable guide
