Brother MFC-L8650CDW - Back Cover;Back Cover Stopper Arm L;Back Cover Stopper Arm R

515 pages

To Next Page

To Previous Page

3-30

Confidential

9.2 Back Cover/Back Cover Stopper Arm L/

Back Cover Stopper Arm R

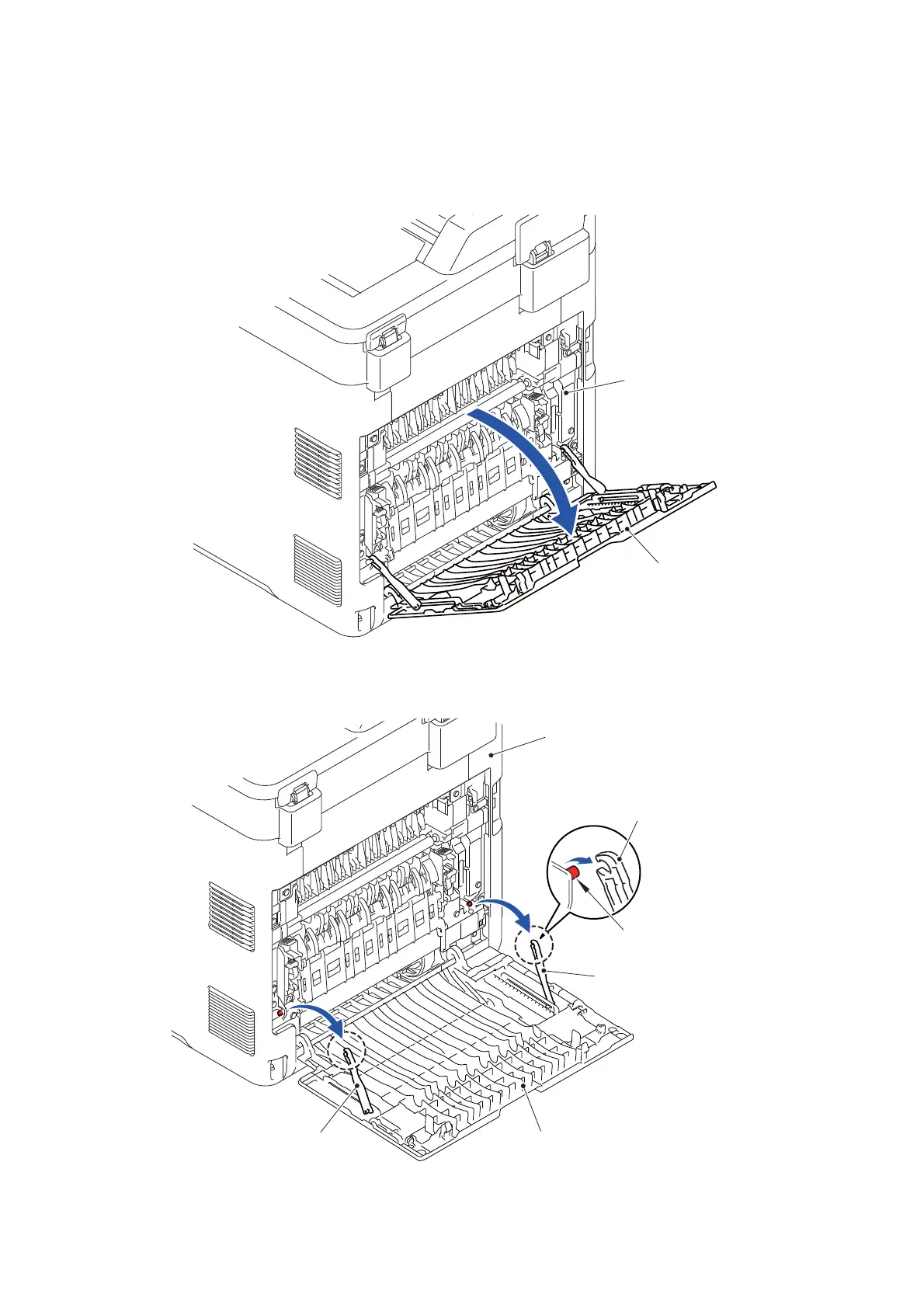

(1) Open the Back cover.

Fig. 3-3

(2) Remove the Back cover stopper arm L/R from the Main body.

Fig. 3-4

Back cover

Main body

Back cover stopper arm L

Main body

Back cover stopper arm R

Back cover stopper arm L

Back cover
