Brother MFC-L8650CDW Service Manual

4-6
Confidential
1.7 Continuous Adjustments of Density and Registration
Sensor (Function code 73)
Perform continuous adjustments of density and registration sensor in accordance with “1.3.29
Continuous adjustments of density and registration sensor (Function code 73)” in Chapter 5.
1.8 Acquisition of White Level Data (Function code 55)
Perform the acquisition of white level data in accordance with “1.3.19 Acquisition of white level
data and setting of CIS scanning area (Function code 55)” in Chapter 5.
1.9 Adjustment of Touch Panel (Function code 61)
Perform adjustment of touch panel in accordance with “1.3.21 Adjustment of touch panel
(Function code 61)” in Chapter 5.

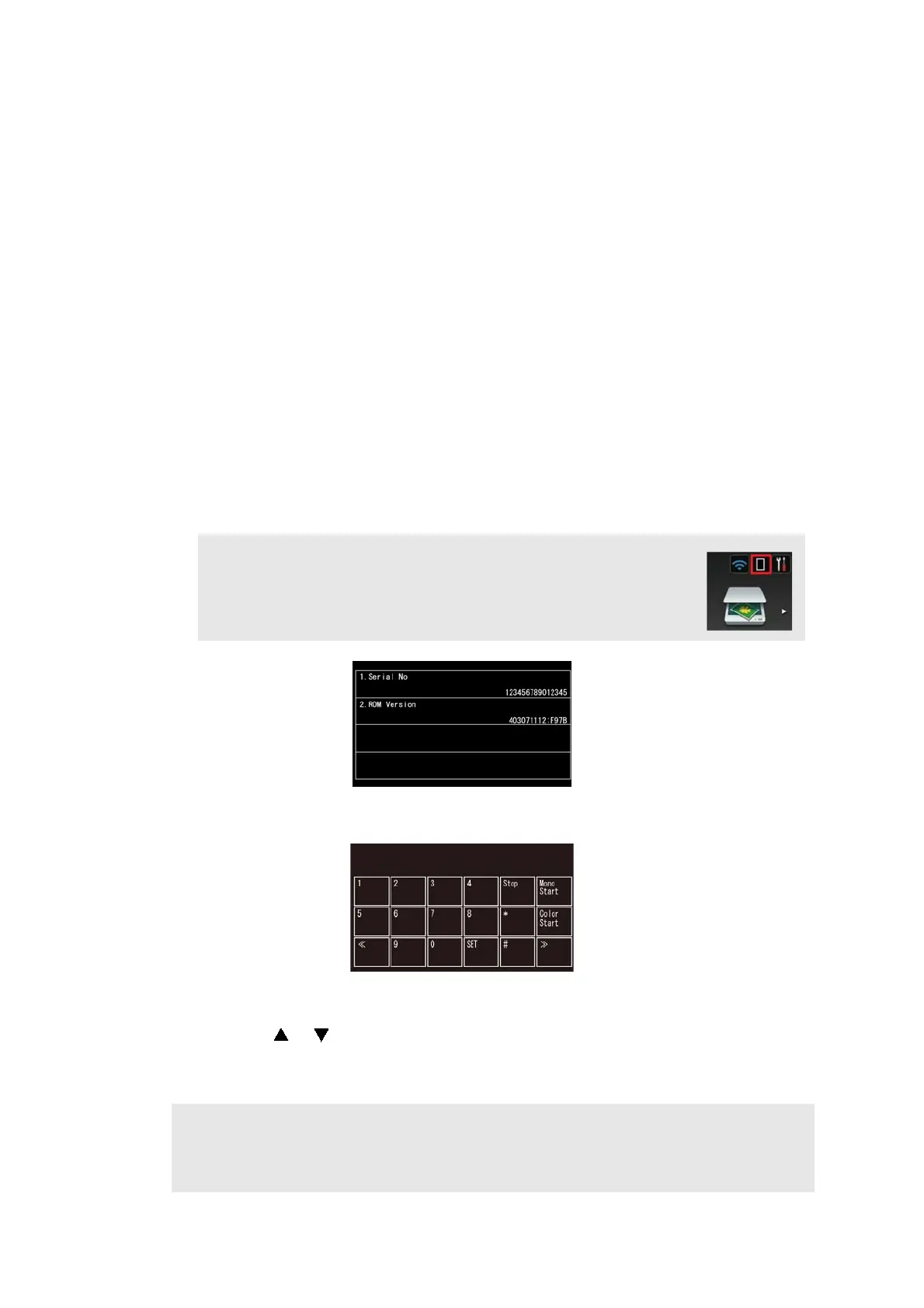

1.10 Restoration of States at Factory Shipment
<Operating procedure>
(1) Hold down the Home key for about 5 seconds while the machine is in the ready state.
The screen shown below is displayed on the LCD.
(2) Hold down the blank space at the bottom of the LCD for about 2 second
s.
Th
e screen shown below is displayed on the LCD.
(3) Press the *, 1, 9, 3, and 7 keys on the LCD in this order.
(4) Press the 0, 0, 8, and 4 keys on the LCD in this order.
(5) Press the or key to display “FUNC_DISABLE” on the LCD.
(6) Press the SET key. The function selection at startup is disabled.
(7) Press the 9 key twice to return the machine to the ready state.
Memo:
If you c
annot find the Home key, press the Toner key, and the Home
key lights up.
Note:
If these procedures are not performed, the machine enters the function selection mode at
startup by holding down the Power key, and the general operation of the machine becomes
unavailable.

Brother MFC-L8650CDW Specifications

General

Print technology	Laser
Maximum resolution	2400 x 600 DPI
Economical printing	Yes
Time to first page (black, normal)	15 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Time to first copy (black, normal)	18 s
Time to first copy (color, normal)	20 s
Scan to	Cloud, E-mail, E-mail Server, File, FTP, Image, OCR, USB
Scan drivers	ICA, ISIS, TWAIN, WIA
Scanner type	ADF scanner
Grayscale levels	256
Input color depth	48 bit
Maximum scan area	A4 (210 x 297) mm
Output color depth	24 bit
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	1200 x 2400 DPI
Faxing	Color faxing
Fax memory	500 pages
Modem speed	33.6 Kbit/s
Fax coding methods	JBIG, MH, MMR (Fax coding method), MR
Fax speed dialing (max numbers)	300
PCL fonts	66
Digital sender	-
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	4
Page description languages	BR-Script 3, PCL 6
Email protocols	APOP, IMAP4, POP3, SMTP
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, EAP-FAST, EAP-TLS, EAP-TTLS, HTTPS, MD5, PEAP, SSL/TLS, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPS
Ethernet LAN data rates	10, 100 Mbit/s
Online services supported	OneDrive, Box, Dropbox, Evernote, Facebook, Flickr, Google Drive, Picasa
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, POP3, SMTP Client, IPP/IPPS, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print/Scan), SNTP Client, LDAP, IMAP4
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, POP3, IPP/IPPS, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, SMTP Client, ICMPv6, SNTP Client, Web Services (Print/Scan), LDAP, IMAP4
Memory slots	1
Processor family	Star Sapphire
Maximum internal memory	512 MB
Sound power level (standby)	28 dB
Sound pressure level (printing)	55 dB
Sound pressure level (quiet mode)	52 dB
Paper input type	Paper tray
Total input capacity	250 sheets
Total output capacity	150 sheets
Multi-Purpose tray input capacity	50 sheets
Auto document feeder (ADF) input capacity	35 sheets
Custom media width	76.2 - 215.9 mm
Custom media length	127 - 355.6 mm
Paper tray media types	Bond paper, Envelopes, Glossy paper, Labels, Plain paper, Recycled paper, Thick paper, Thin paper
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Display	TFT
Control type	Touch
Product color	Black, Grey
Display diagonal	3.6 \
Market positioning	Business
Standard interfaces	Ethernet, USB 1.1, USB 2.0, Wireless LAN
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.04 W
Power consumption (ready)	65 W
Power consumption (average operating)	565 W
Mac operating systems supported	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 R2
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Bundled software	Brother Control Center 4\\r Nuance PaperPort 12 SE\\r Brother Control Center 2
Sustainability certificates	Nordic Swan Ecolabel, Blue Angel, ENERGY STAR
Storage temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Storage relative humidity (H-H)	20 - 80 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	503 mm
Width	410 mm
Height	492 mm
