9.64 MP Paper Empty/Registration Front Sensor PCB ASSY

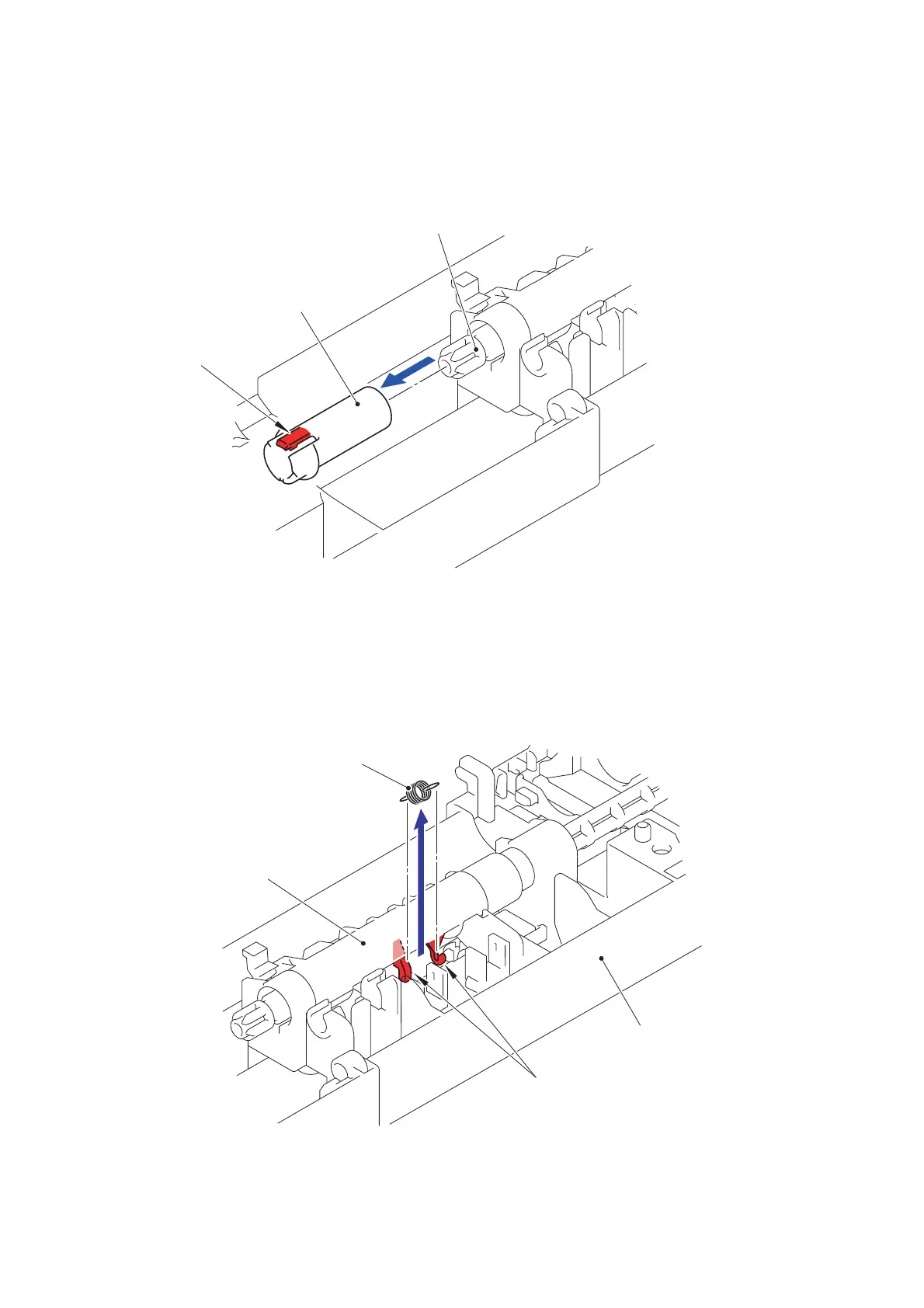

(1) Release the Hook and remove the MP separation roller bushing from the MP drive shaft.

Fig. 3-246

(2) Release the two Hooks and remove the MP registration front actuator spring from the MP

registration front actuator.

Fig. 3-247

Hook

MP separation roller bushing

MP drive shaft

MP registration front actuator spring

Hook

MP registration front actuator

MP upper cover ASSY
