Brother MFC-L8650CDW - Toner;New Sensor PCB ASSY

To Next Page

To Previous Page

3-153

Confidential

9.53 Toner/New Sensor PCB ASSY

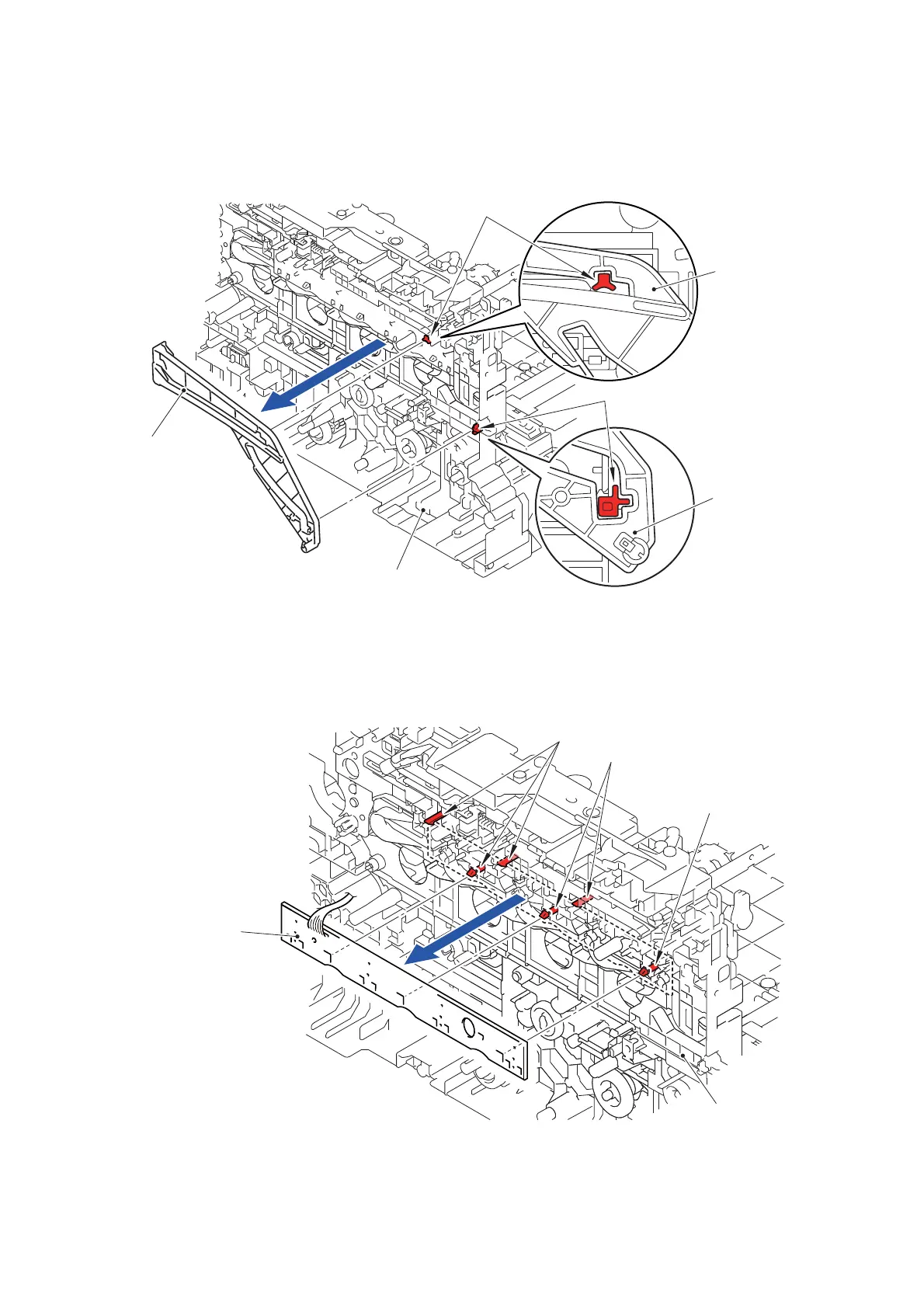

(1) Release the two Hooks and remove the Forced develop release link from the Main body.

Fig. 3-212

(2) Release the six Hooks and remove the Toner/new sensor PCB ASSY from the Main body.

Fig. 3-213

Hook

Main body

Hook

Forced develop

release link

Forced develop

release link

Forced develop

release link

Hook

Main body

Hook

PCB ASSY

Toner/new sensor
