Brother MFC-L8650CDW - Modem PCB Assy;Modem Flat Cable

3-128
Confidential
9.42 Modem PCB ASSY/Modem Flat Cable
■
A4 model
(1) Remove the Screw pan (S/P washer) M3.5x6 screw and remove the Modem FG harness.
(2) Disconnect the Modem flat cable (CN28) from the Main PCB ASSY.

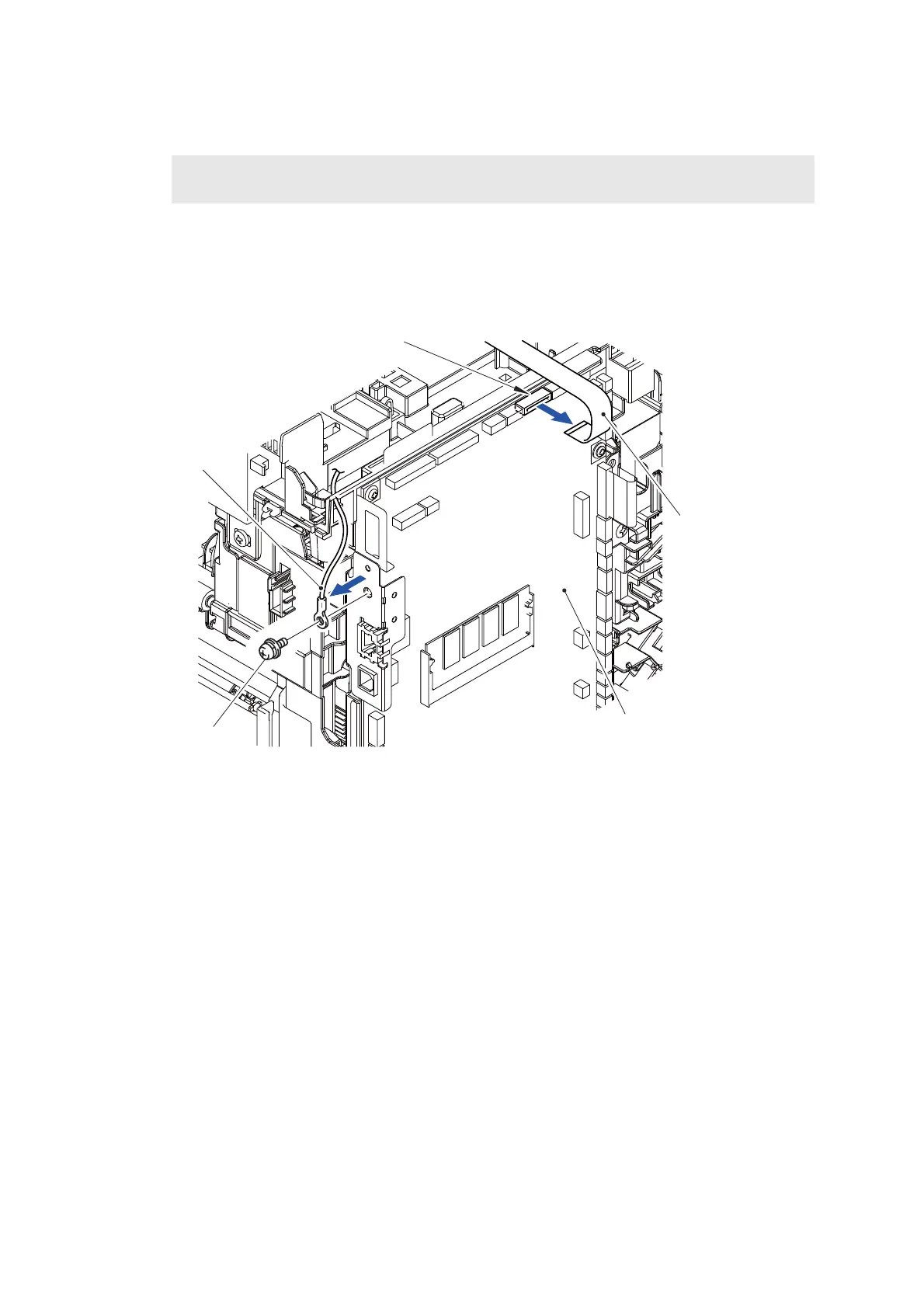

Fig. 3-172
Memo:
Follow the procedures (8) to (11) in the case of the Legal model.
Screw pan (S/P washer)
Modem FG harness
Modem flat cable
Main PCB ASSY
CN28
M3.5x6
<Back side>
1
2
