9.68 High-voltage Power Supply PCB ASSY

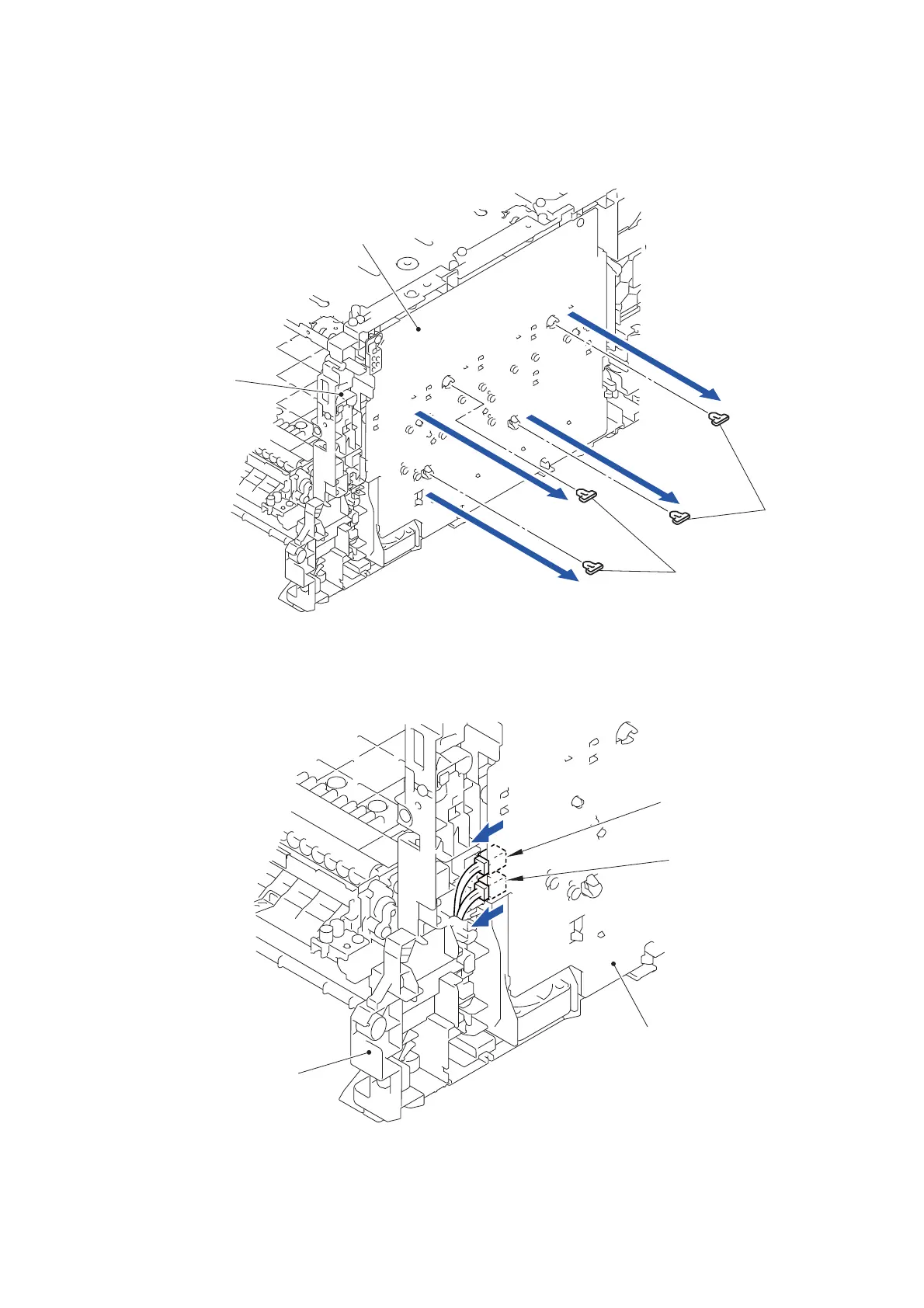

(1) Remove the four Spacers from the Main frame R ASSY.

Fig. 3-265

(2) Disconnect the two Connectors (CN6 and CN7) from the High-voltage power supply PCB

ASSY.

Fig. 3-266

Spacer

High-voltage power supply PCB ASSY

Main frame R ASSY

CN6

CN7

High-voltage power supply PCB ASSY
