9.15 Pull Arm L/Pull Arm R (A4 Model Only)

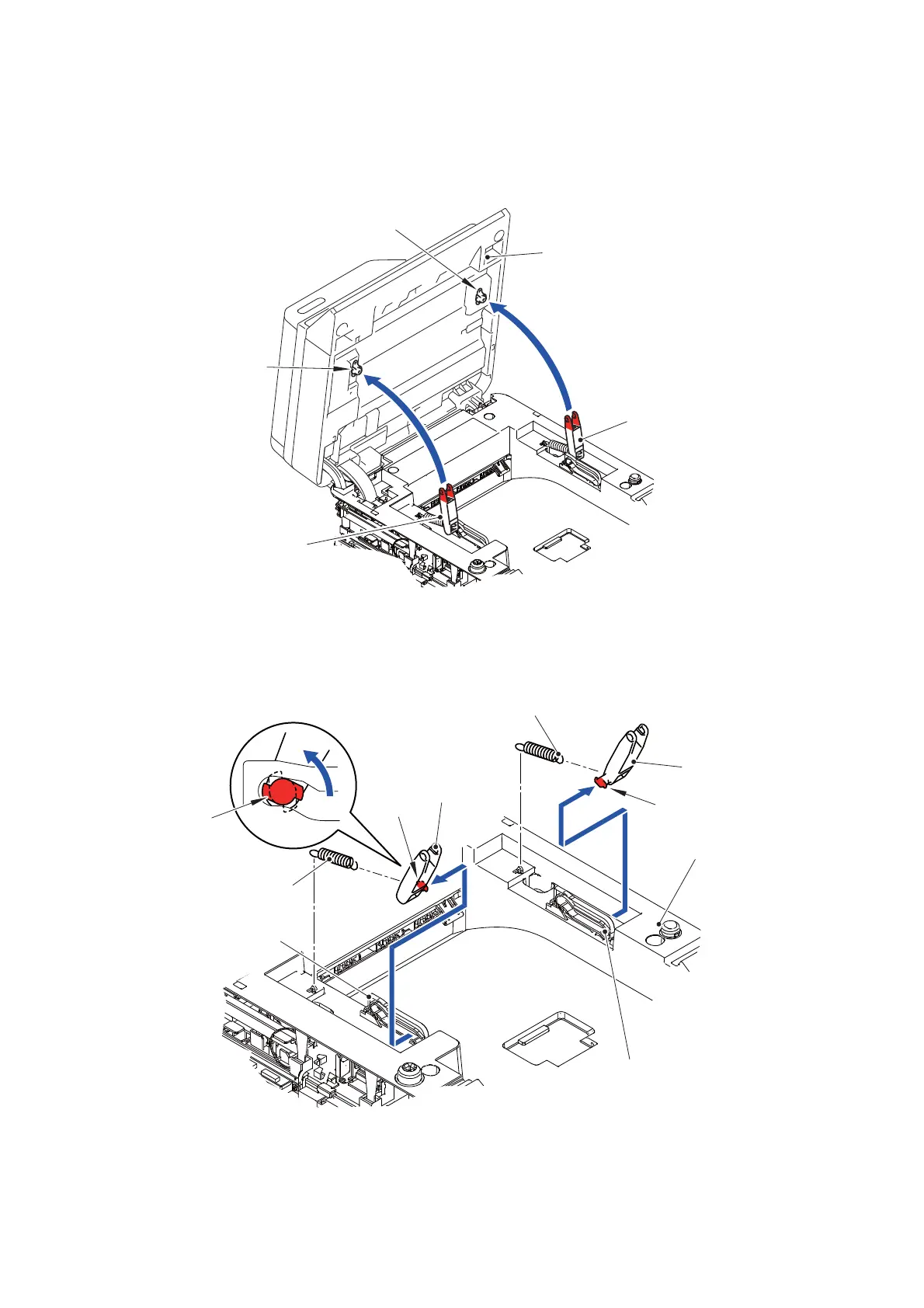

(1) Open the Pull arm L and Pull arm R and release the Hooks from the joint of the Document
scanner unit.
Fig. 3-51
(2) Remove the Pull arm L and Pull arm spring from the Pull arm guide.
(3) Remove the Pull arm R and Pull arm spring from the Pull arm guide.
Fig. 3-52
Document scanner unit
Hook
Pull arm L
Pull arm R
Hook
Hook
Pull arm L
Pull arm guide
Pull arm spring
Pull arm spring
Pull arm guide
Pull arm R
Rib
Rib
Rib
Main body
