9.30 Eject Film

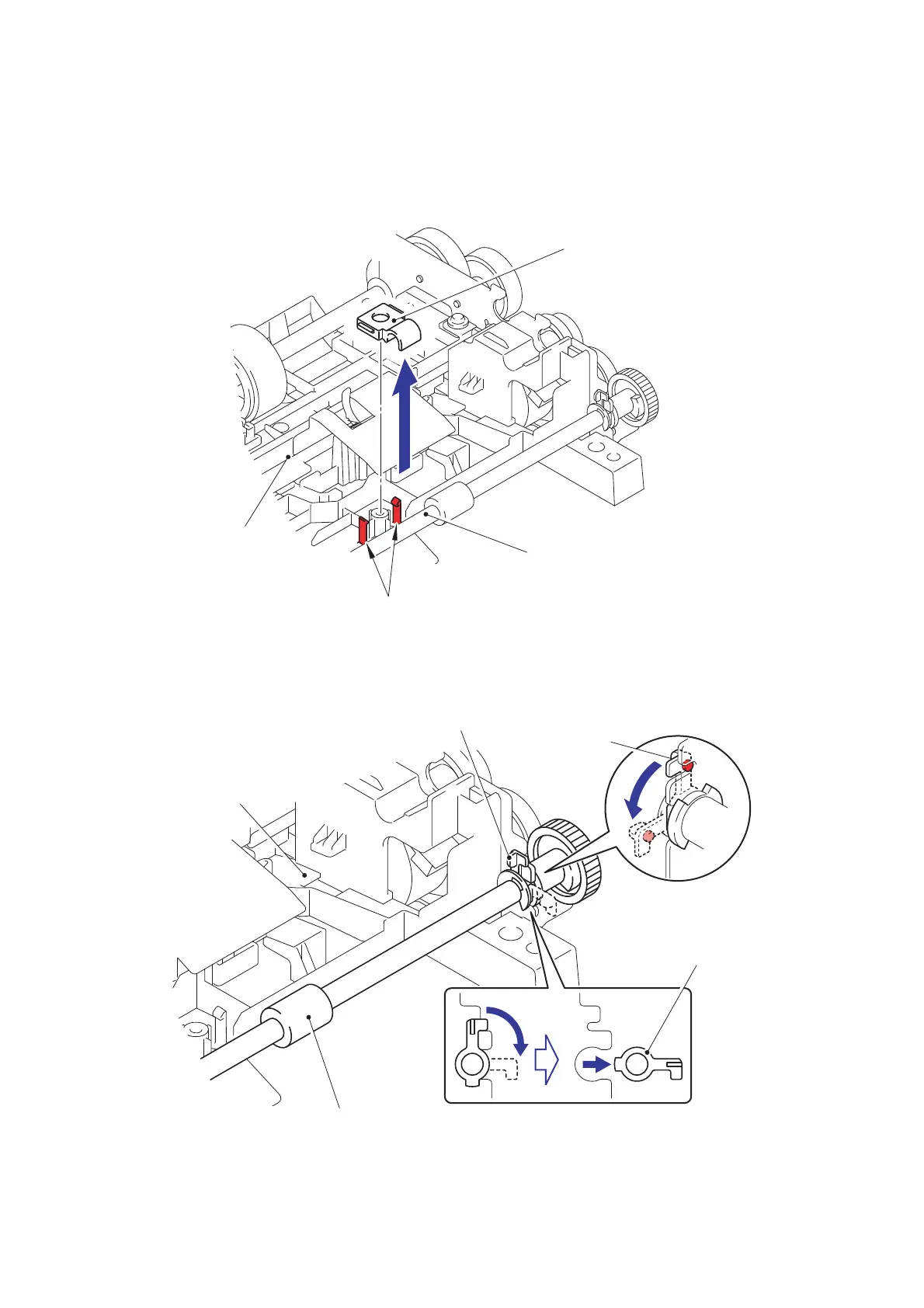

(1) Release the two Hooks and remove the Document ejection roller bushing from the
Document ejection roller.
Fig. 3-123
(2) Rotate the Conductive bushing to release the lock.
Fig. 3-124
Hook
Document ejection roller bushing
Document ejection roller
Lower ADF chute
Conductive bushing
Conductive bushing
Document ejection roller
2a
2b
Lower ADF chute
Conductive bushing
