9.4 Cleaner Pinch Roller S ASSY

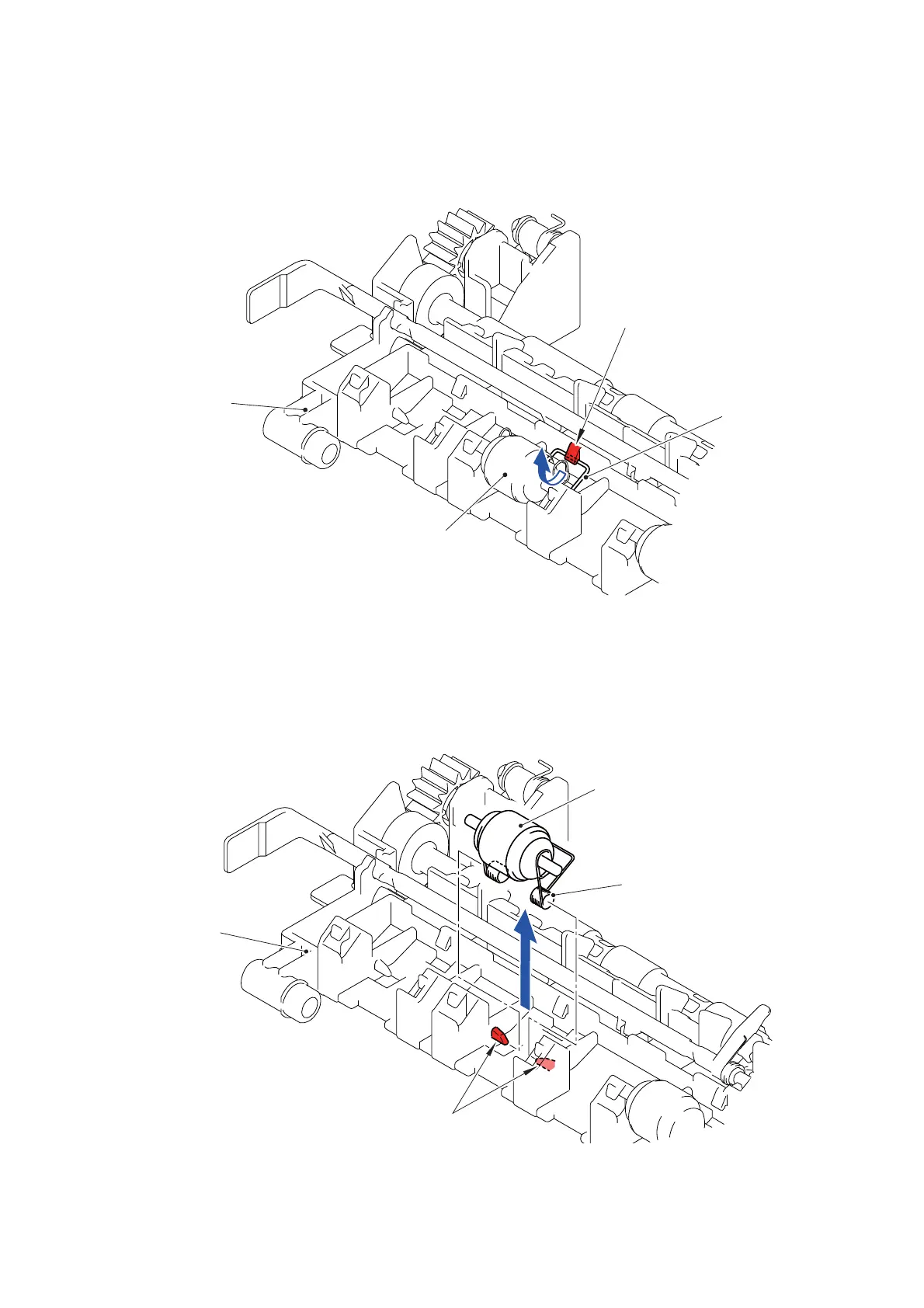

(1) Remove the Cleaner roller spring from the Hook of the Fuser cover ASSY.

Fig. 3-12

(2) Remove the Cleaner roller spring from the two Pins of the Fuser cover ASSY.

Remove the Cleaner pinch roller S ASSY and Cleaner roller spring from the Fuser cover

ASSY.

Fig. 3-13

Hook

Cleaner pinch roller S ASSY

Cleaner

roller spring

Fuser cover ASSY

Cleaner roller spring

Cleaner pinch roller S ASSY

Fuser cover ASSY
