Brother MFC-L8650CDW

To Next Page

To Previous Page

3-86

Confidential

9.26 CIS Spacer

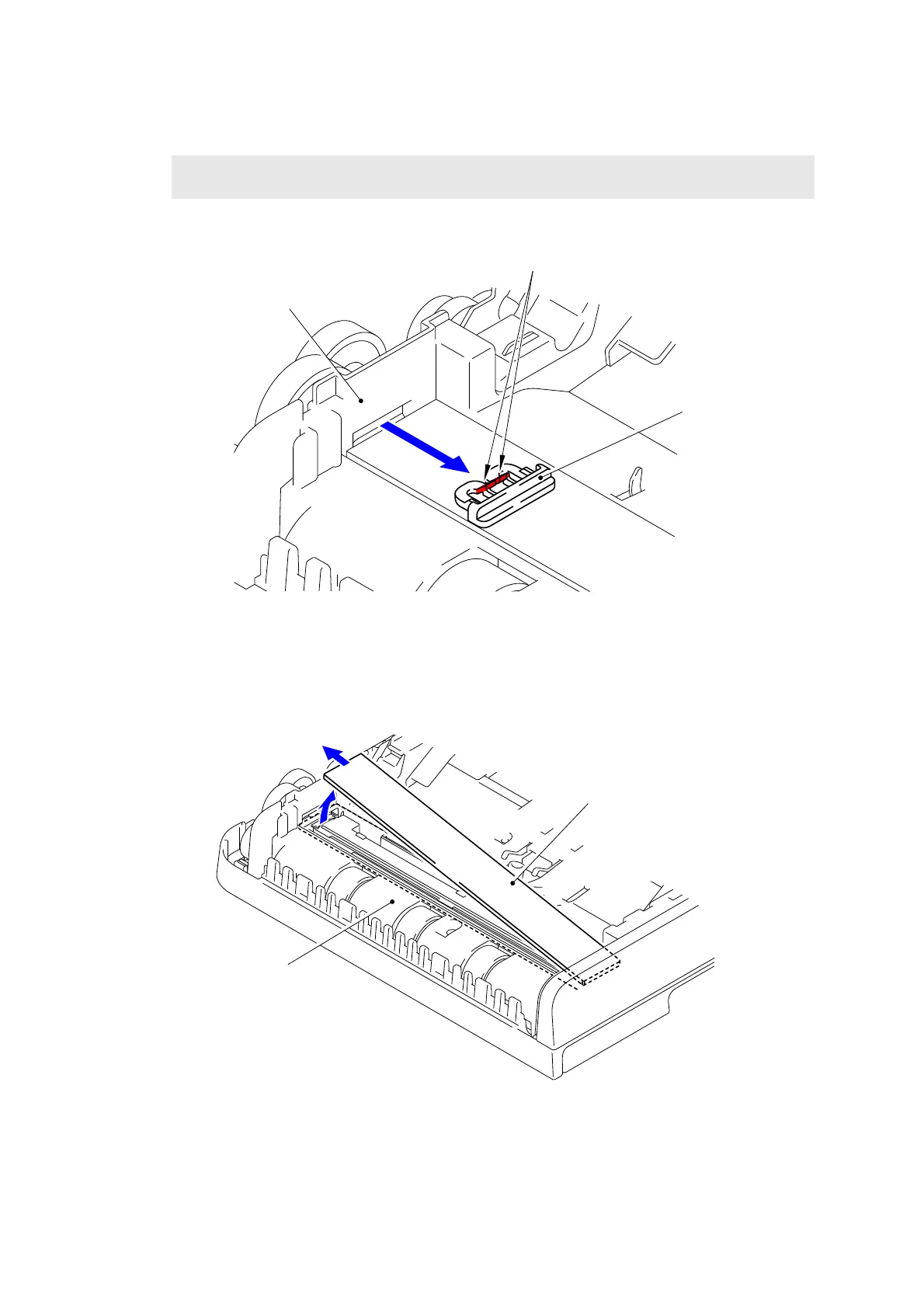

(1) Release the two Hooks and remove the CIS glass stopper from the ADF unit.

Fig. 3-96

(2) Remove the CIS glass from the ADF unit.

Fig. 3-97

Note:

Disassemble it in a place without dust.

Hook

CIS glass stopper

ADF unit

CIS glass

ADF unit
