3-85

Confidential

(3) Remove the ADF spring from the Upper ADF chute.

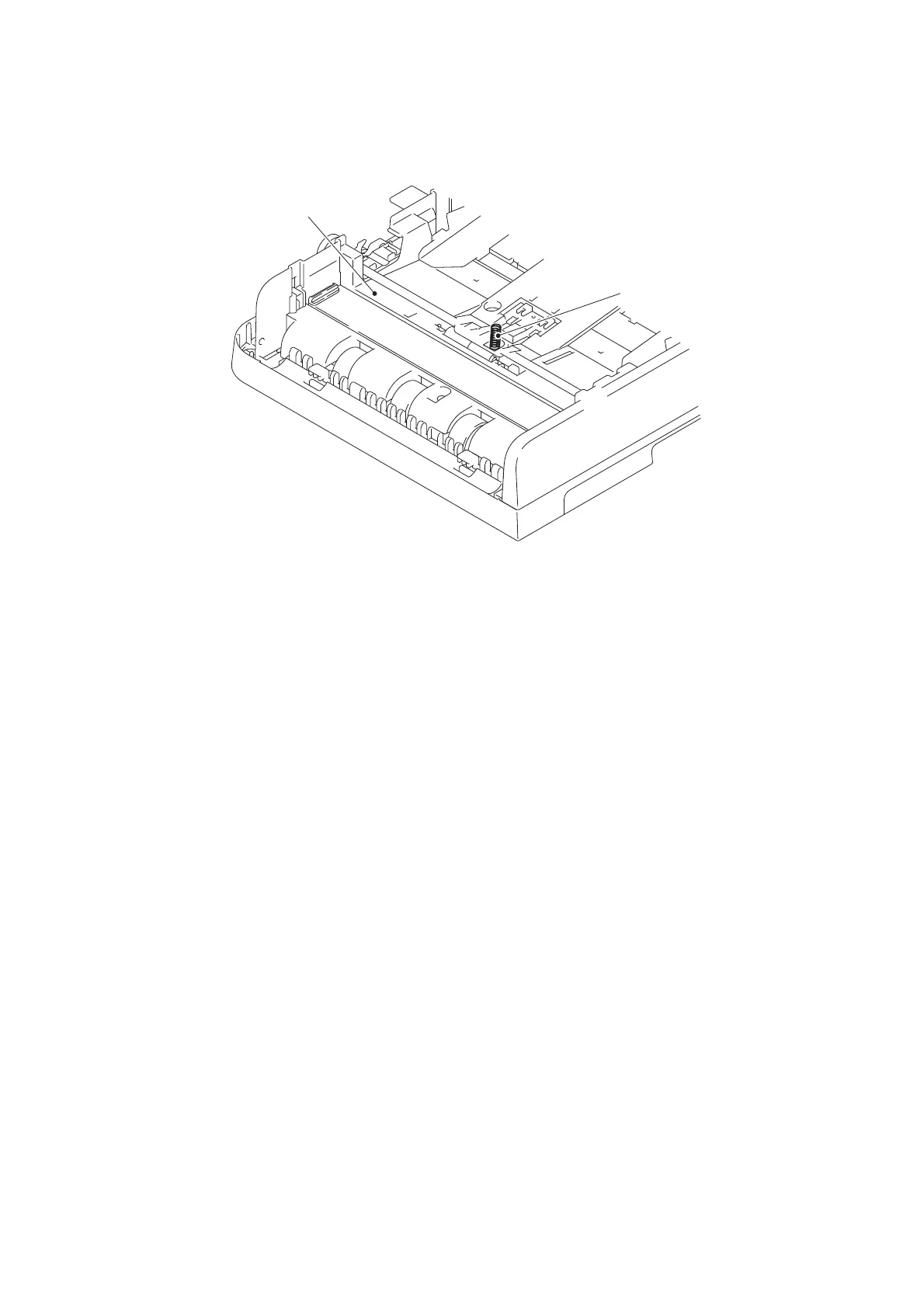

Fig. 3-95

ADF spring

Upper ADF chute
