Brother MFC-L8650CDW - Joint Cover Top

To Next Page

To Previous Page

3-123

Confidential

9.41 Joint Cover Top

■

A4 model

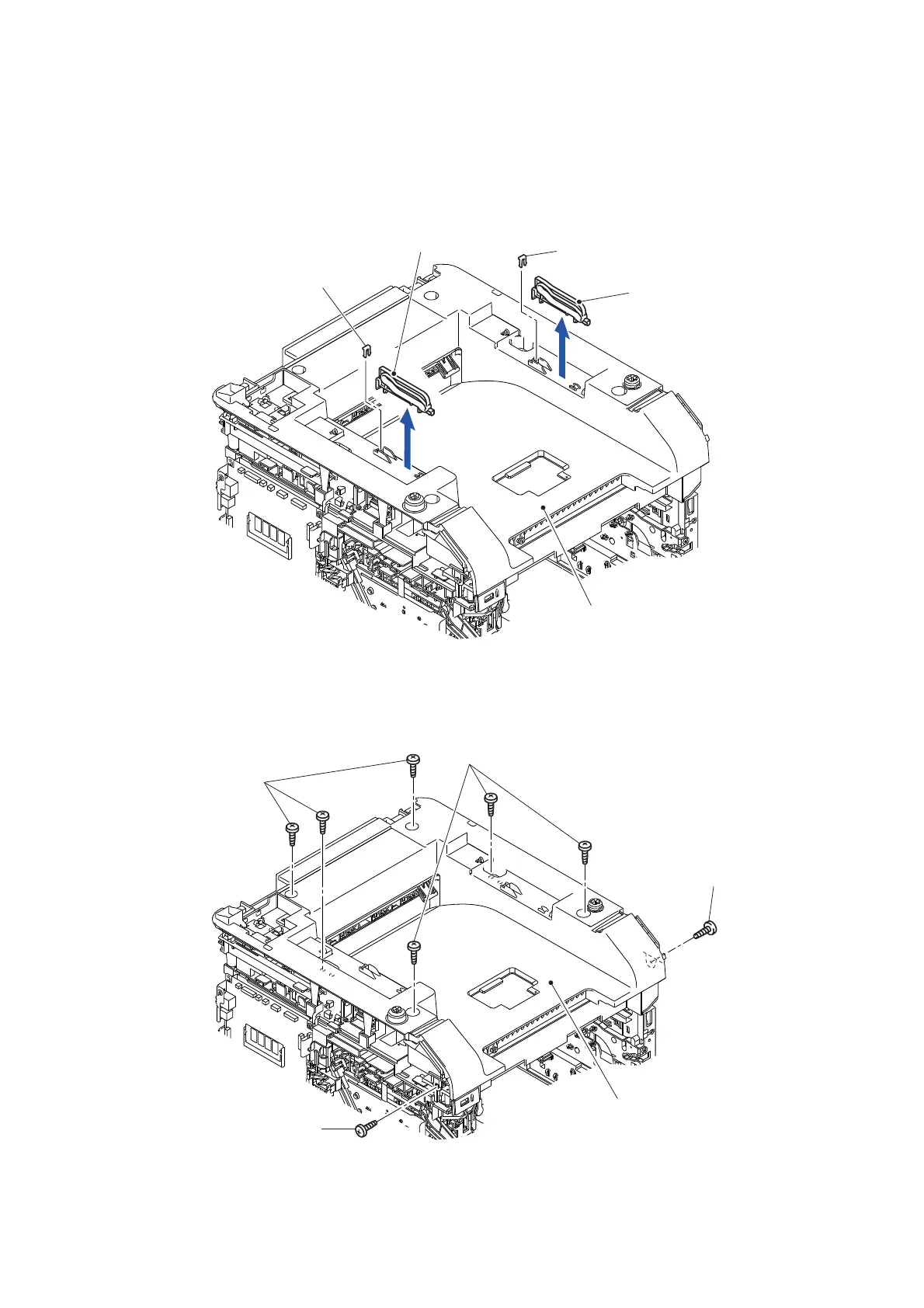

(1) Remove the Lock claw and remove the Pull arm guide from the Joint cover top.

Fig. 3-163

(2) Remove the eight Taptite bind B M4x12 screws from the Joint cover top.

Fig. 3-164

Lock claw

Pull arm guide

Joint cover top

Taptite bind B M4x12
