Brother MFC-L8650CDW - ADF Separation Spring Holder (Legal Model Only)

To Next Page

To Previous Page

3-84

Confidential

9.25 ADF Separation Spring Holder (Legal Model Only)

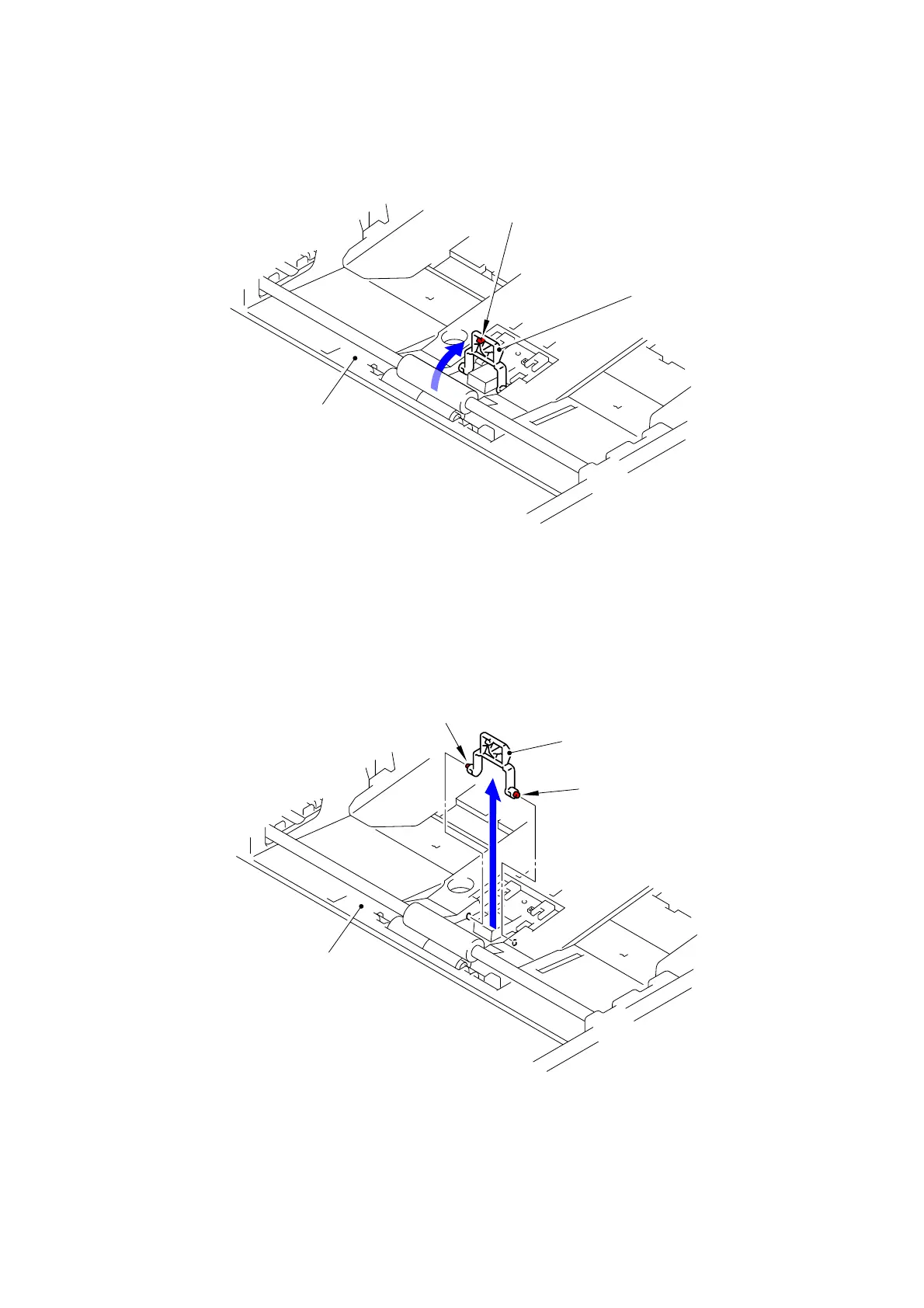

(1) Release the Hook of the ADF separation spring holder.

Fig. 3-93

(2) Remove the two Pins and remove the ADF separation spring holder from the Upper ADF

chute.

Fig. 3-94

Hook

ADF separation spring holder

Upper ADF chute

ADF separation spring holder
