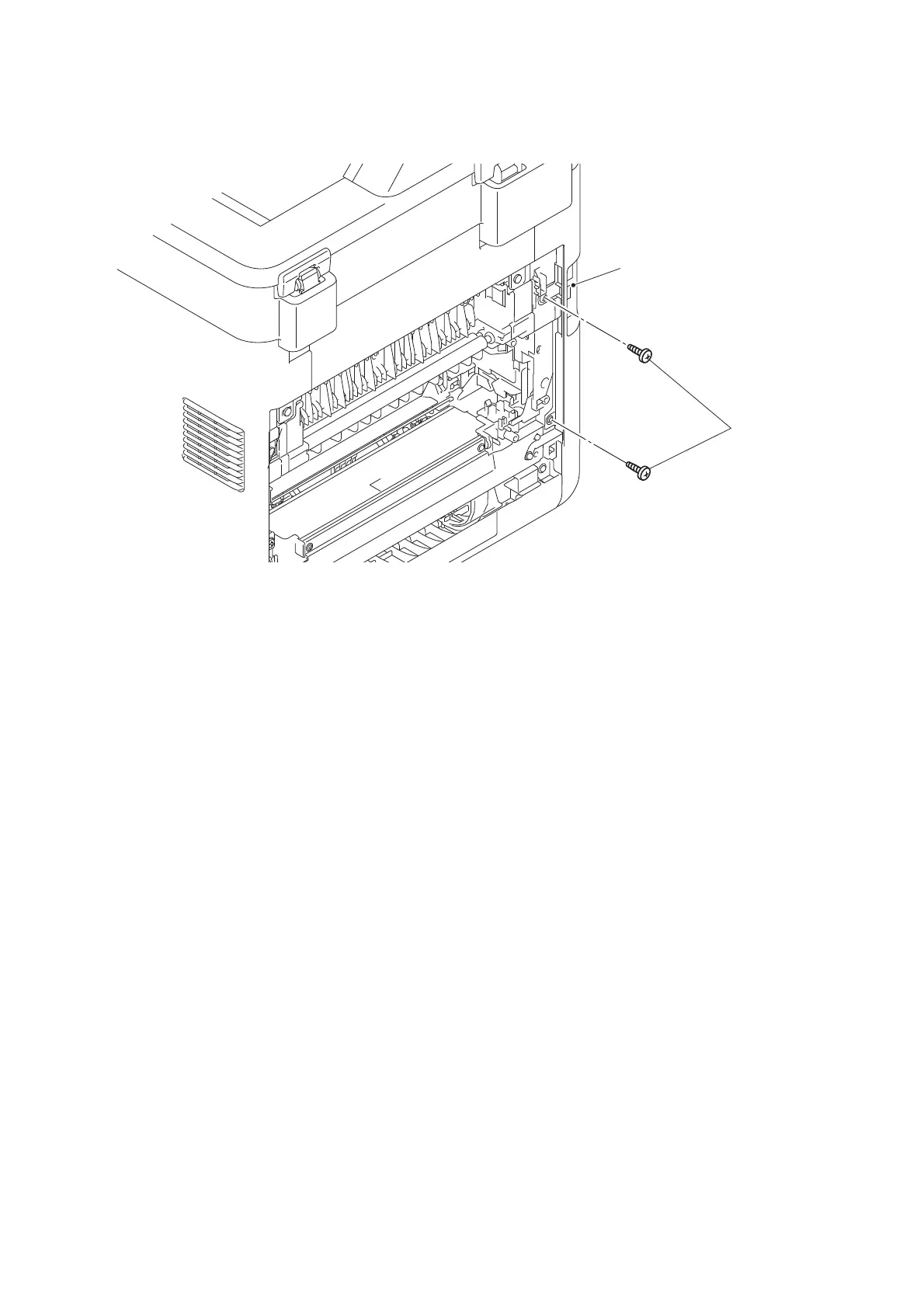

(4) Remove the two Taptite bind B M4x12 screws from the back of the Side cover L.

Fig. 3-23

Side cover L

Taptite bind B

M4x12
