■ A4 model

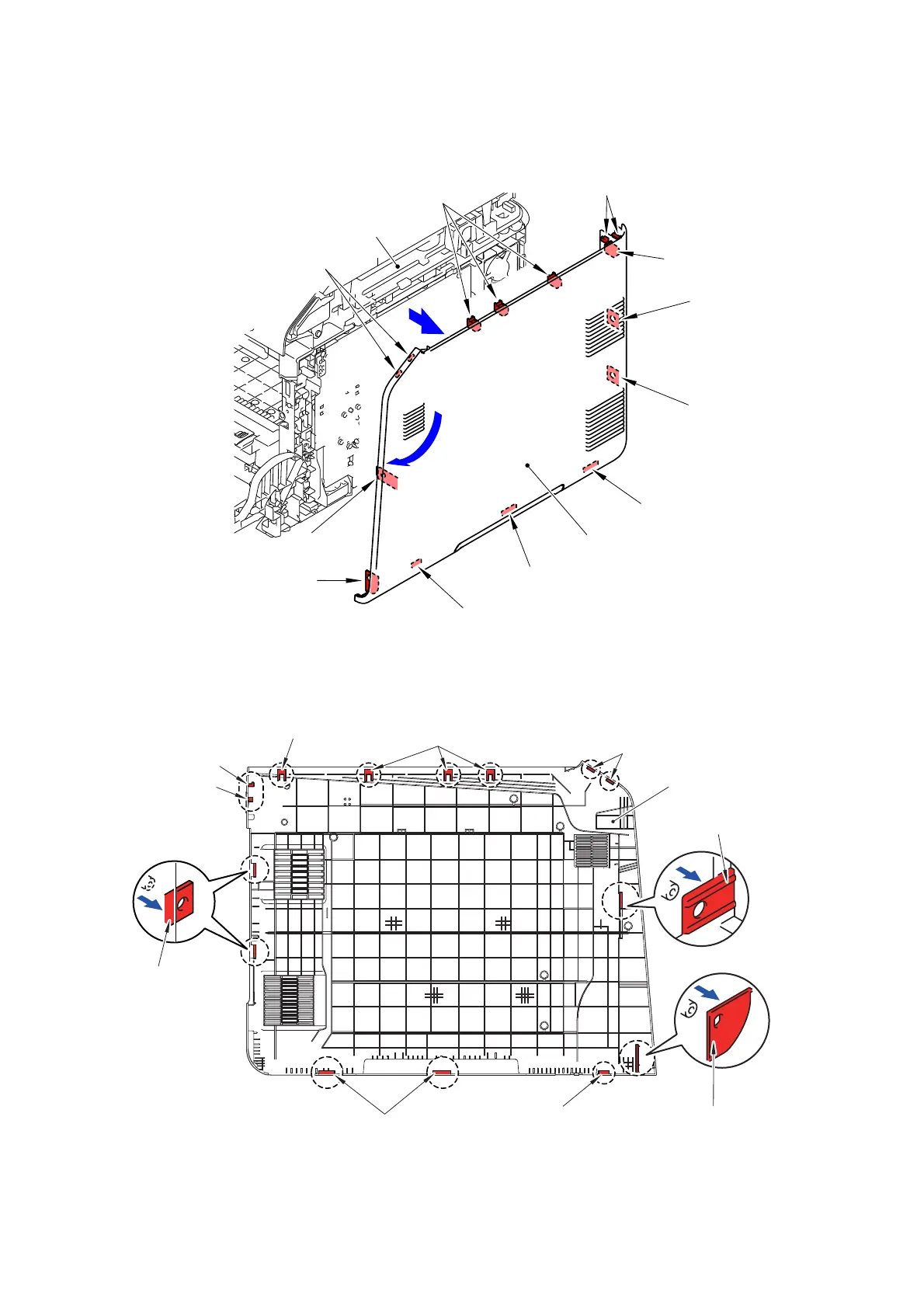

(3) Release the Hooks 1 to 7 in numerical order. Move the Side cover R in the direction of the
arrow 3a and release the other Hooks and remove Side cover R from the Main body.
Fig. 3-30
* Inside of Side cover R
Fig. 3-31
<Front side>
Hook 1
Hook 2
Hook 3
Hook 4
Hook 5
Hook 6
Hook 7
3a
3b
Main body
Side cover R
Hook
Hook
Hook
Hook
Hook
Hook
Hook
Hook
Hook
Hook
Hook
Hook
Hook
Hook
Side cover R
<Front side>
<Back side>
