3-51

Confidential

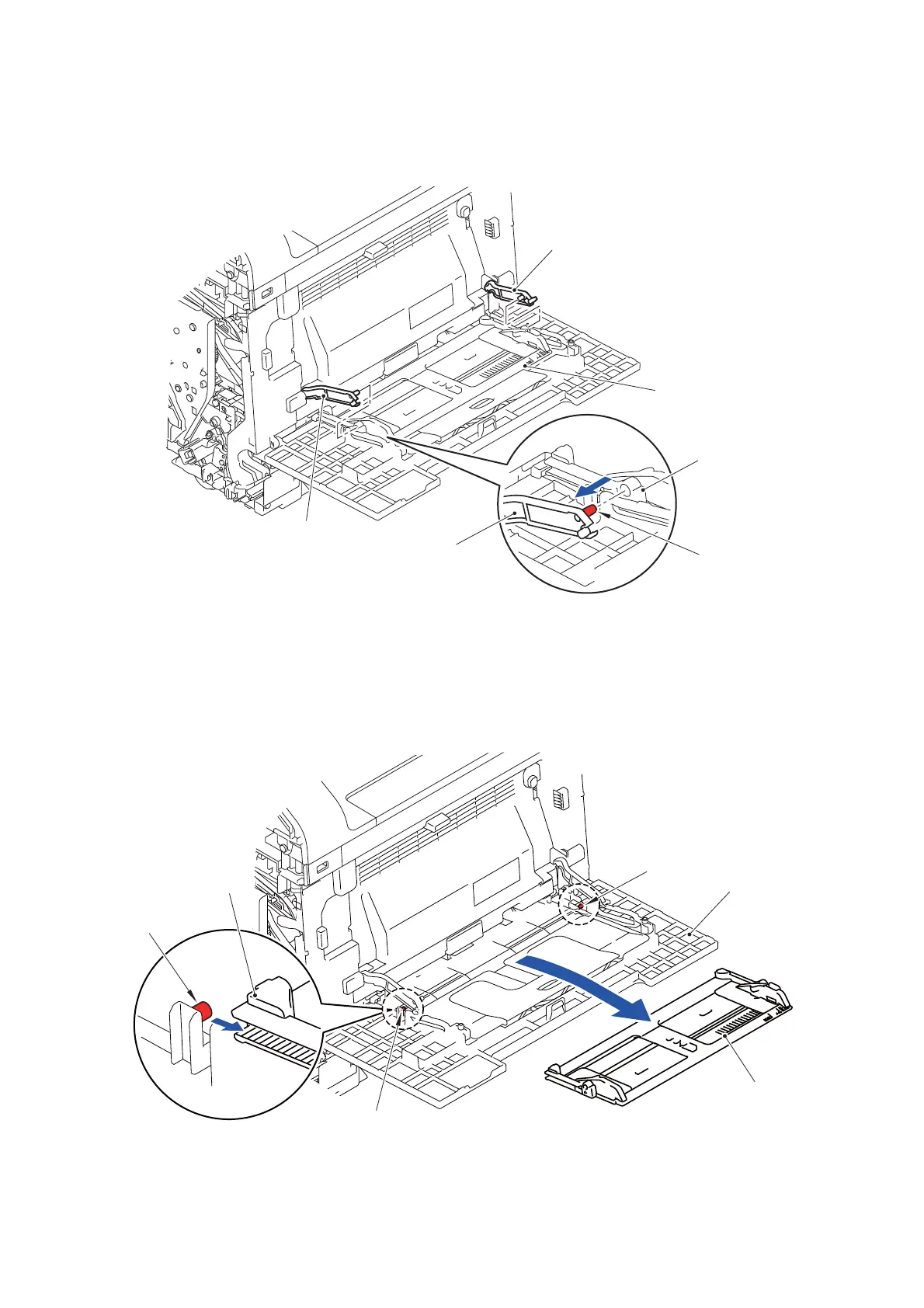

(5) Release the Pin of the MP link L from the MP paper guide ASSY.

(6) Release the Pin of the MP link R from the MP paper guide ASSY.

Fig. 3-38

(7) Slide the MP paper guide ASSY in the direction of the arrow 7b and remove it from MP

cover ASSY.

Fig. 3-39

MP link L

MP link R

MP paper guide ASSY

MP link L/MP link R

MP paper

guide ASSY

MP paper guide ASSY

MP cover ASSY
