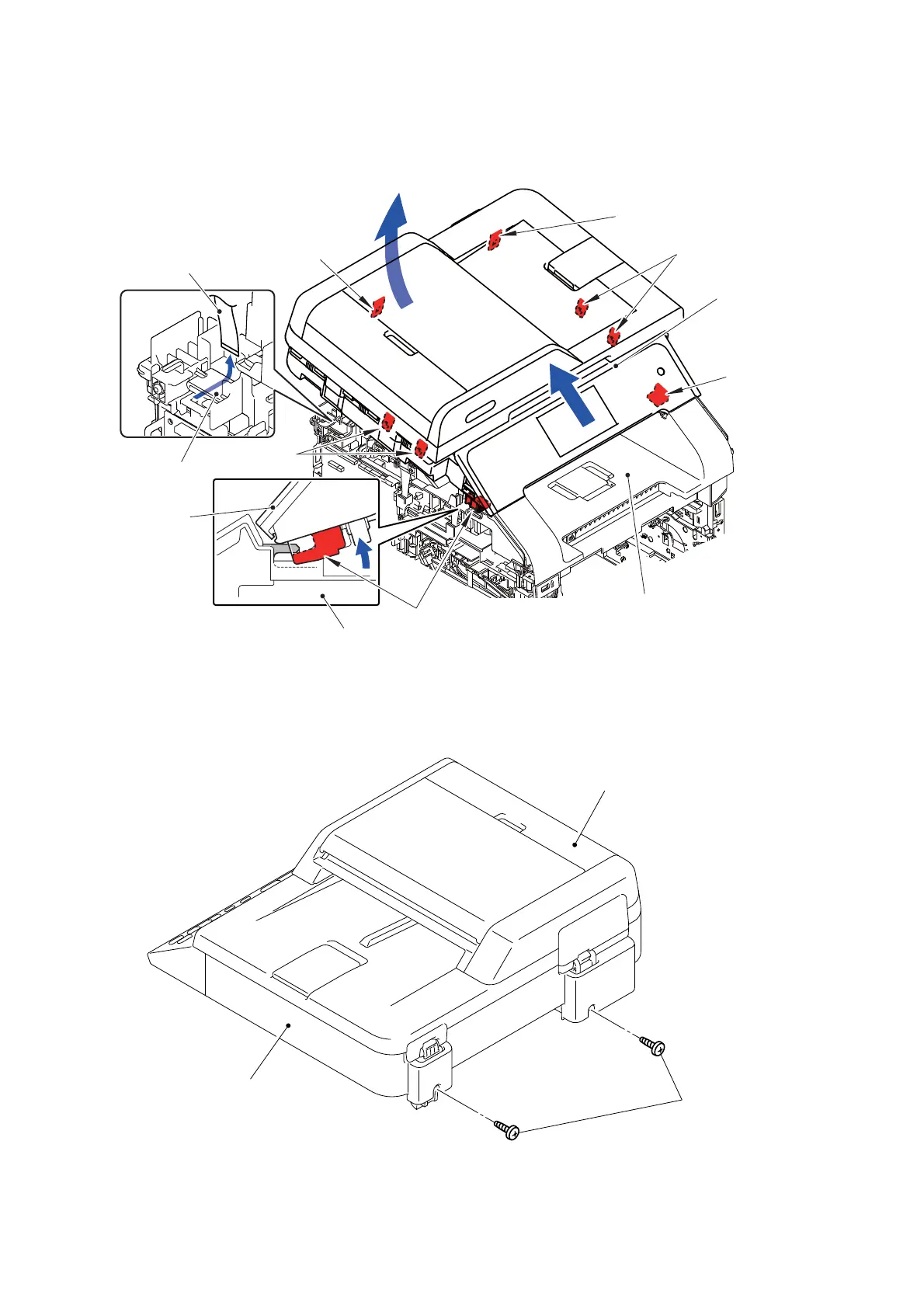

(12) Remove the eight Hooks and lift the Document scanner unit from the Main body.
(13) Pull out the First side CIS flat cable from the Flat core of the Main body as lifting the
Document scanner unit.
Fig. 3-69
(14) Remove the two Taptite bind B M4x12 screws from the ADF unit.
Fig. 3-70
Main body
Hook
Hook
Hook
Hook
Hook
Main body
Document
Hook
Flat core
First side CIS flat cable
scanner unit
Document
scanner unit
Taptite bind B M4x12
Document scanner unit
ADF unit
