Brother MFC-L8650CDW

To Next Page

To Previous Page

3-99

Confidential

(13) Disconnect the Connector from the Second side document scanning position sensor PCB

ASSY.

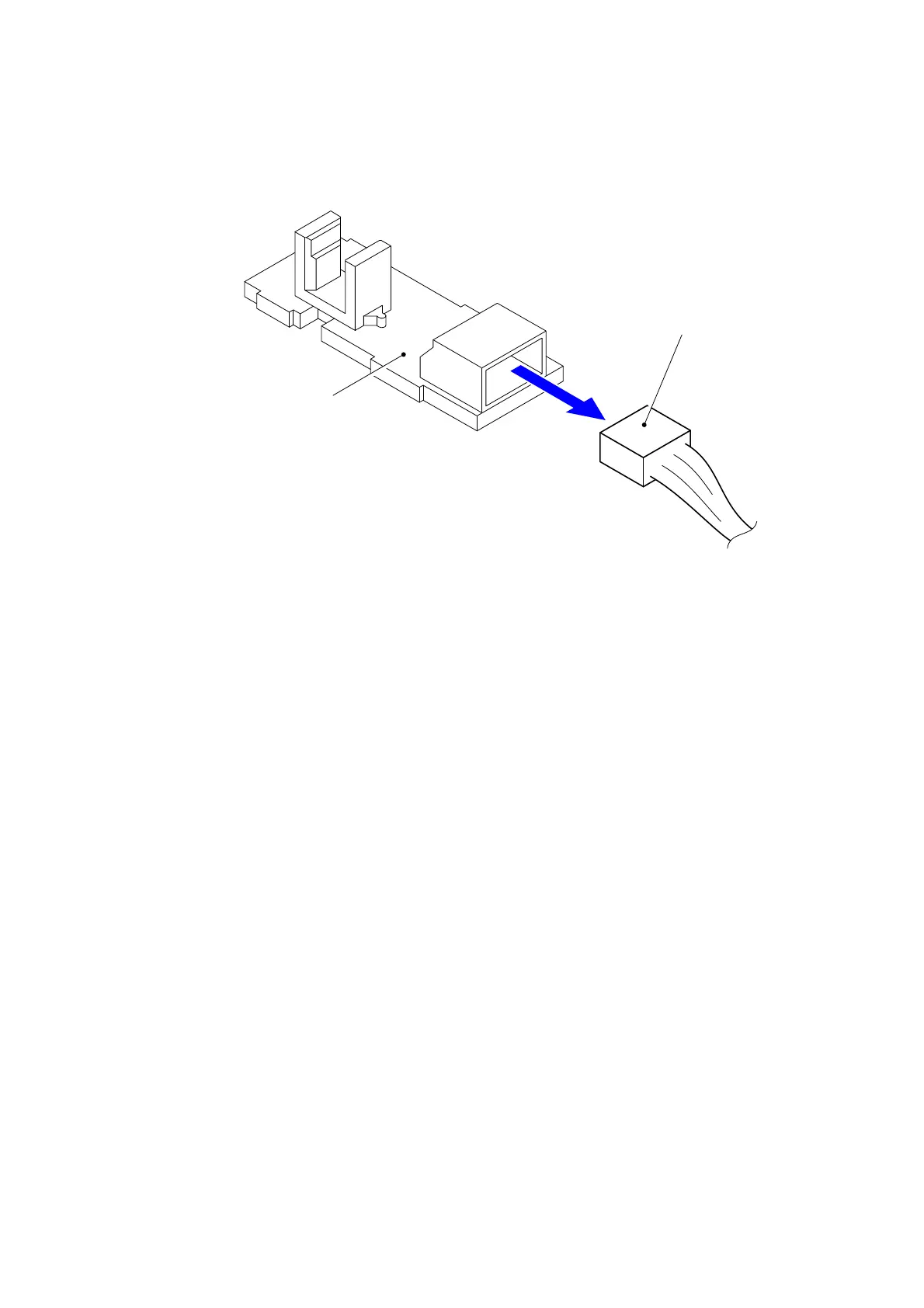

Fig. 3-119

(14) Remove the First side document scanning position sensor PCB ASSY in the same way.

Connector

Second side document scanning

position sensor PCB ASSY

Main Page
