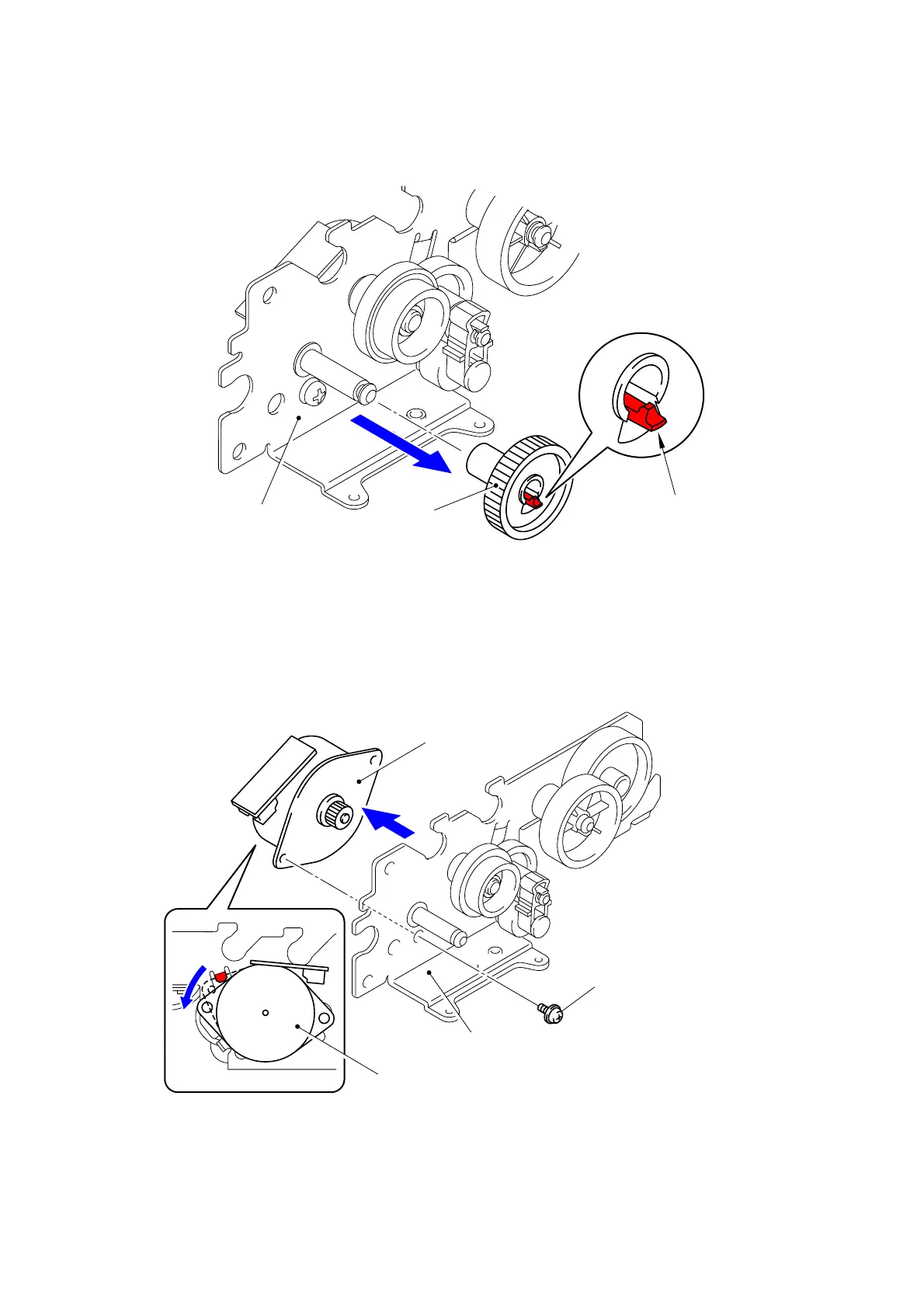

(4) Release the Hook and remove the Gear43 from the Drive frame ASSY.

Fig. 3-132

(5) Remove the Screw pan (S/P washer) M3x6 screw and remove the ADF motor from the

Drive frame ASSY.

Fig. 3-133

Hook

Gear43

Drive frame ASSY

Screw pan (S/P washer) M3x6

Drive frame ASSY

ADF motor
