Brother MFC-L8650CDW

To Next Page

To Previous Page

3-119

Confidential

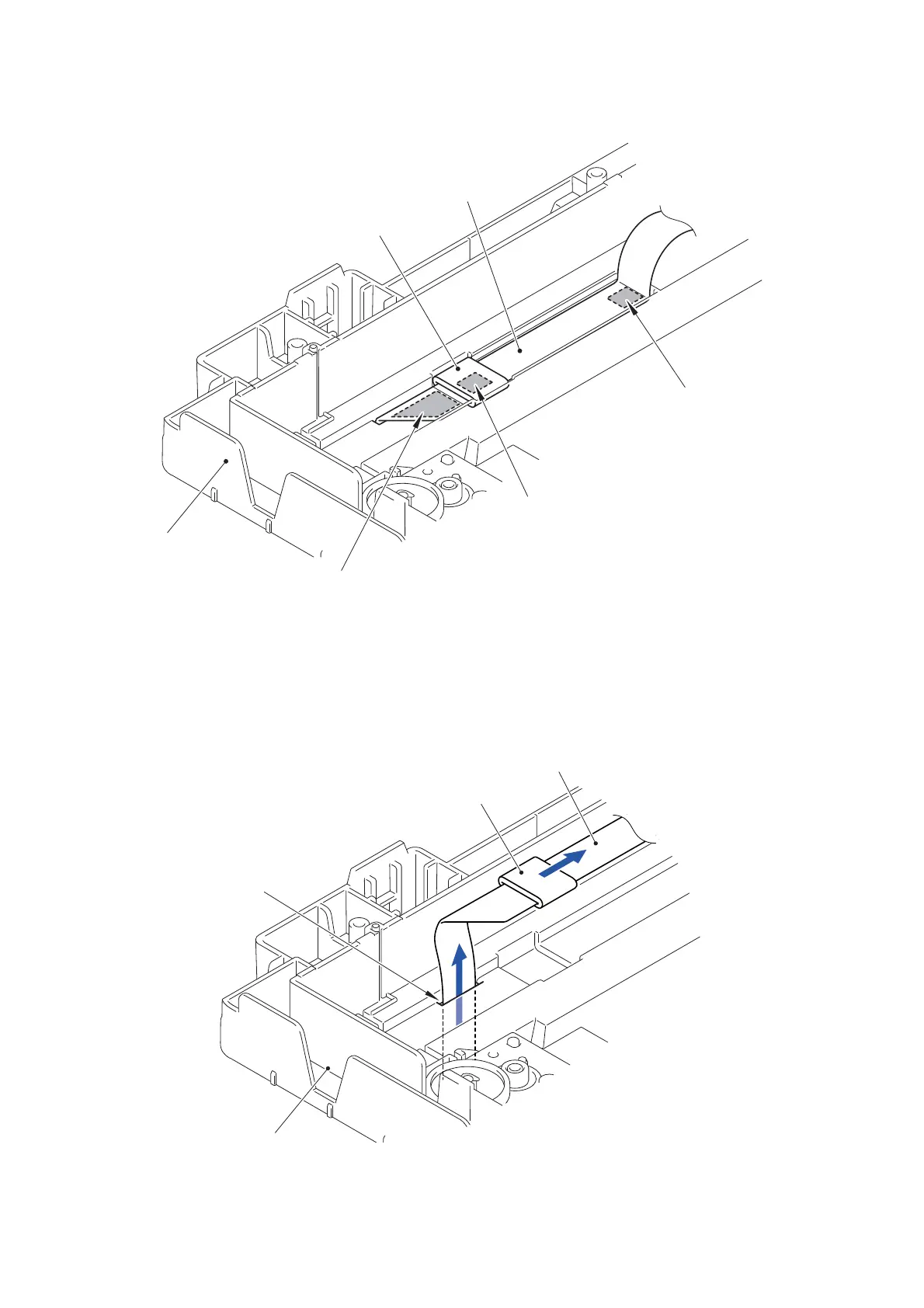

(7) Peel off the Double-sided adhesive tapes at three locations.

Fig. 3-157

(8) Pull out the First side CIS flat cable from the Hole of the Document scanner bottom cover

ASSY.

(9) Remove the Flat core from the First side CIS flat cable.

Fig. 3-158

Double-sided adhesive tape

Flat core

First side CIS flat cable

Document scanner

bottom cover ASSY

Document scanner

Hole

Flat core

bottom cover ASSY

First side CIS flat cable
