3-177

Confidential

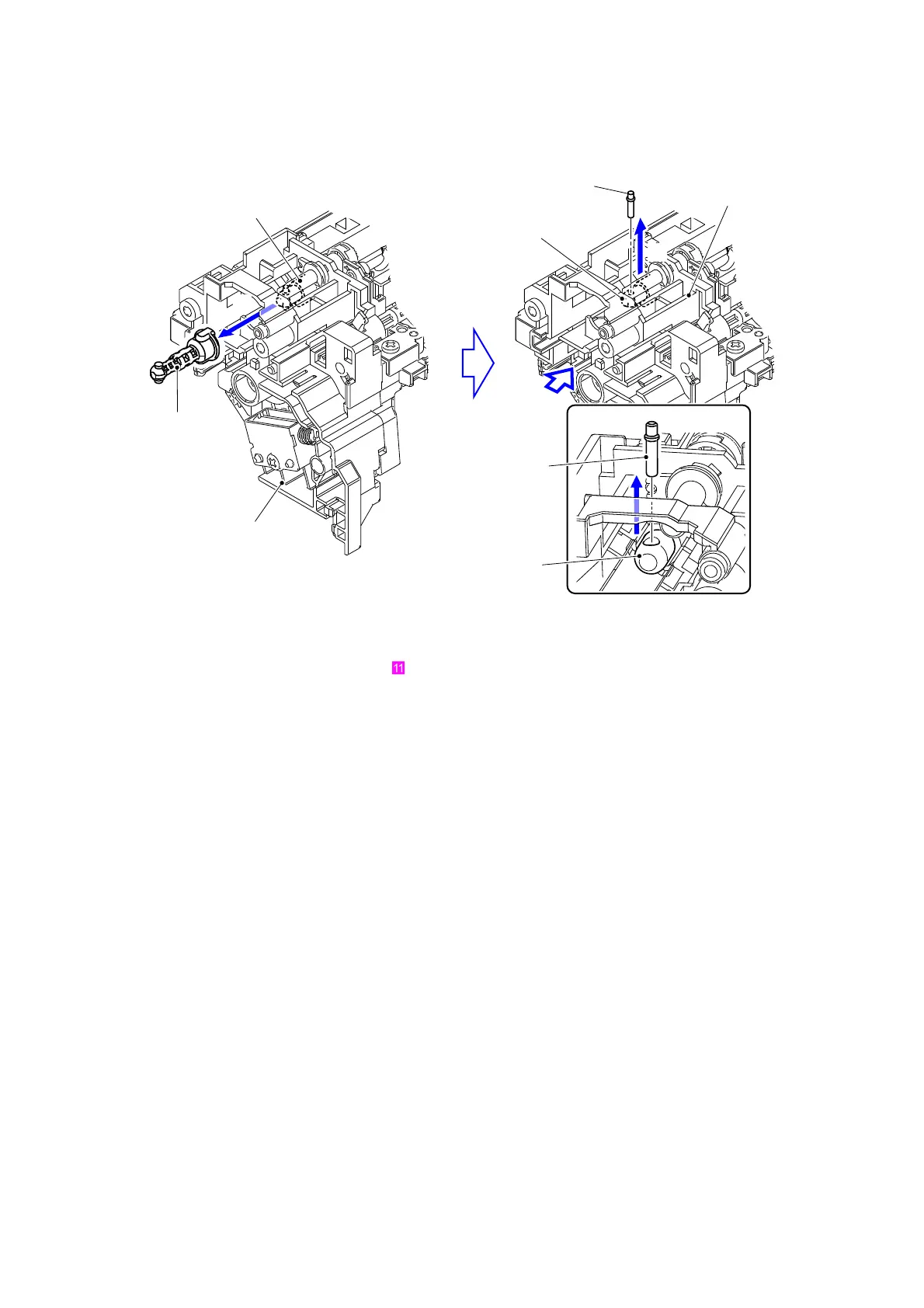

(8) Remove the Registration roller drive joint from the PF registration roller shaft.

(9) Remove the Joint pin from the PF registration roller shaft.

Fig. 3-256

Harness routing: Refer to “ Paper Feed Unit”

Registration roller

Joint pin

Paper feed unit

PF registration roller shaft

Joint pin

PF registration roller shaft

Paper feed unit

PF registration roller shaft

A view

drive joint
