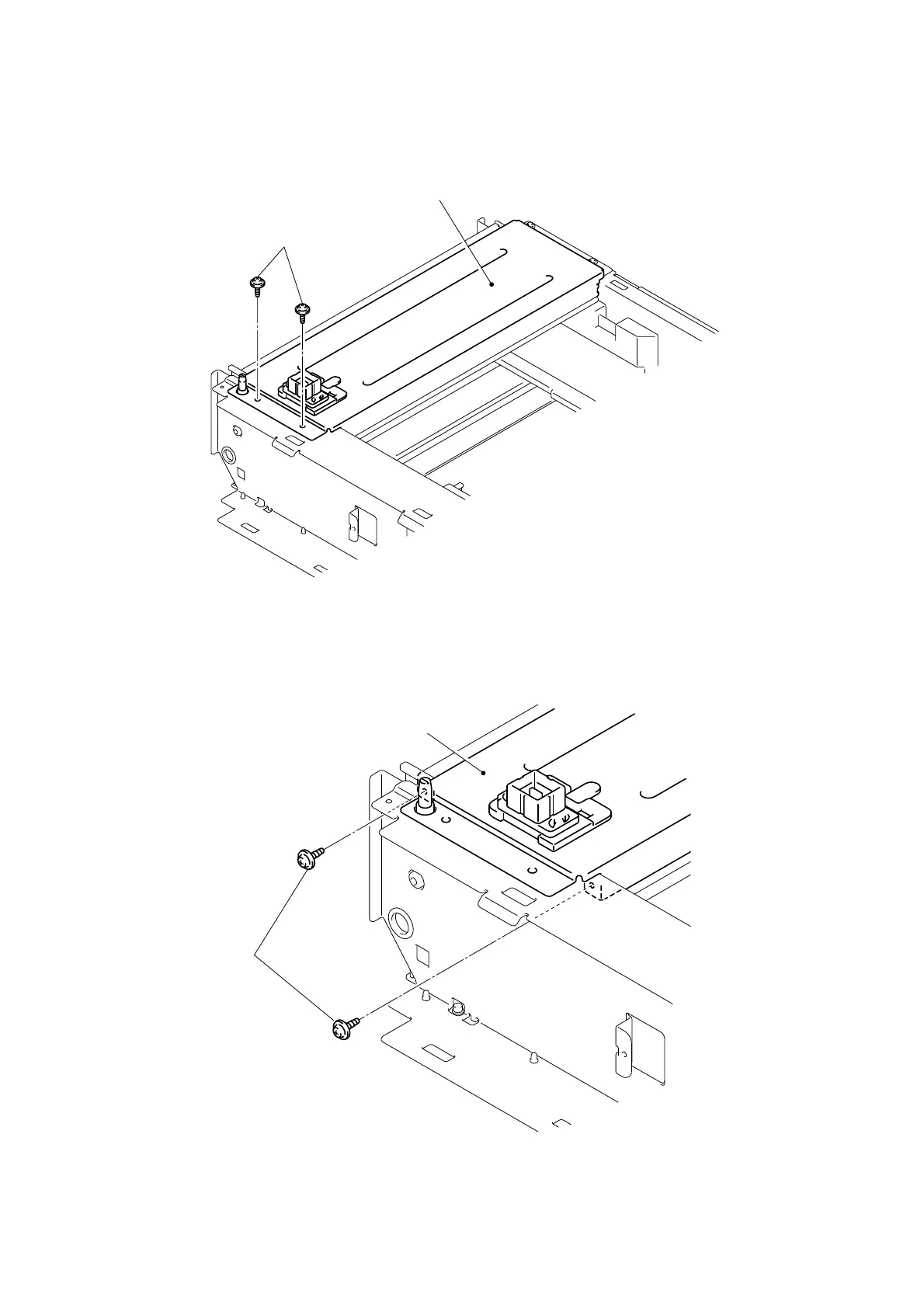

(18) Turn the T2 frame L unit right side up.

(19) Remove the two Taptite cup S M3x6 SR screws from the T2 beam rear.

Fig. 3-295

(20) Remove the two Taptite cup S M3x6 SR screws from the T2 beam rear.

Fig. 3-296

T2 beam rear

Taptite cup S M3x6 SR

Taptite cup S M3x6 SR

T2 beam rear
