Brother MFC-L8650CDW

To Next Page

To Previous Page

3-204

Confidential

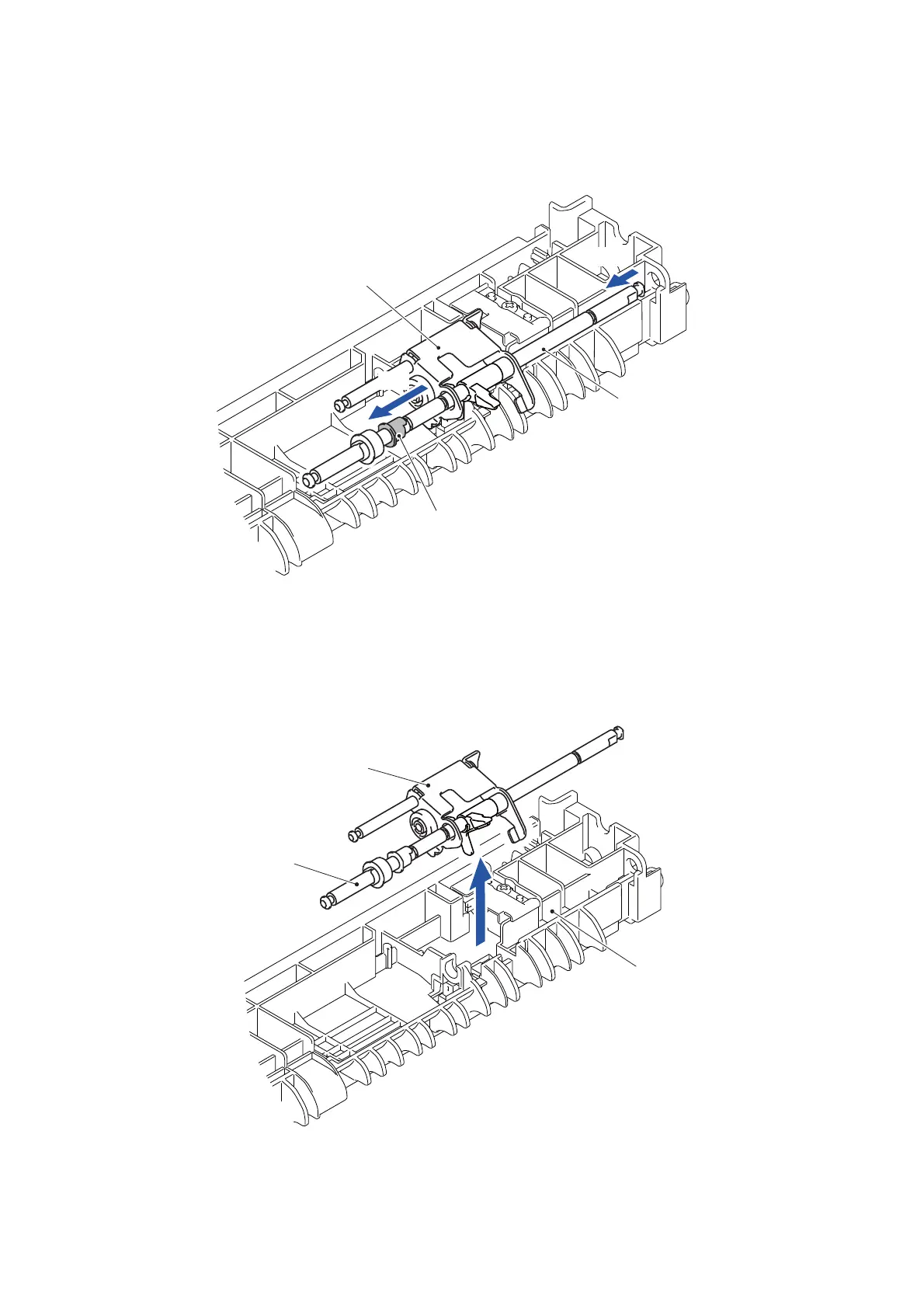

(29) Slide the T2 paper feed drive shaft in the direction of the arrow 29a and remove the T2

paper feed holder bushing from the T2 paper feed holder ASSY.

Fig. 3-305

(30) Remove the T2 paper feed holder ASSY and T2 paper feed drive shaft from the T2 paper

feed frame unit.

Fig. 3-306

29a

29b

T2 paper feed drive shaft

T2 paper feed holder bushing

T2 paper feed holder ASSY

T2 paper feed frame unit

T2 paper feed holder ASSY

T2 paper feed drive shaft
