5-13
Confidential
[2] Printout of worker switch (WSW) data (Function code 11)
<Function>
This function is used to print out the setting items and the details set by the worker switches.
<Operating procedure>
(1) Press the 1 key twice in the initial state of the maintenance mode.

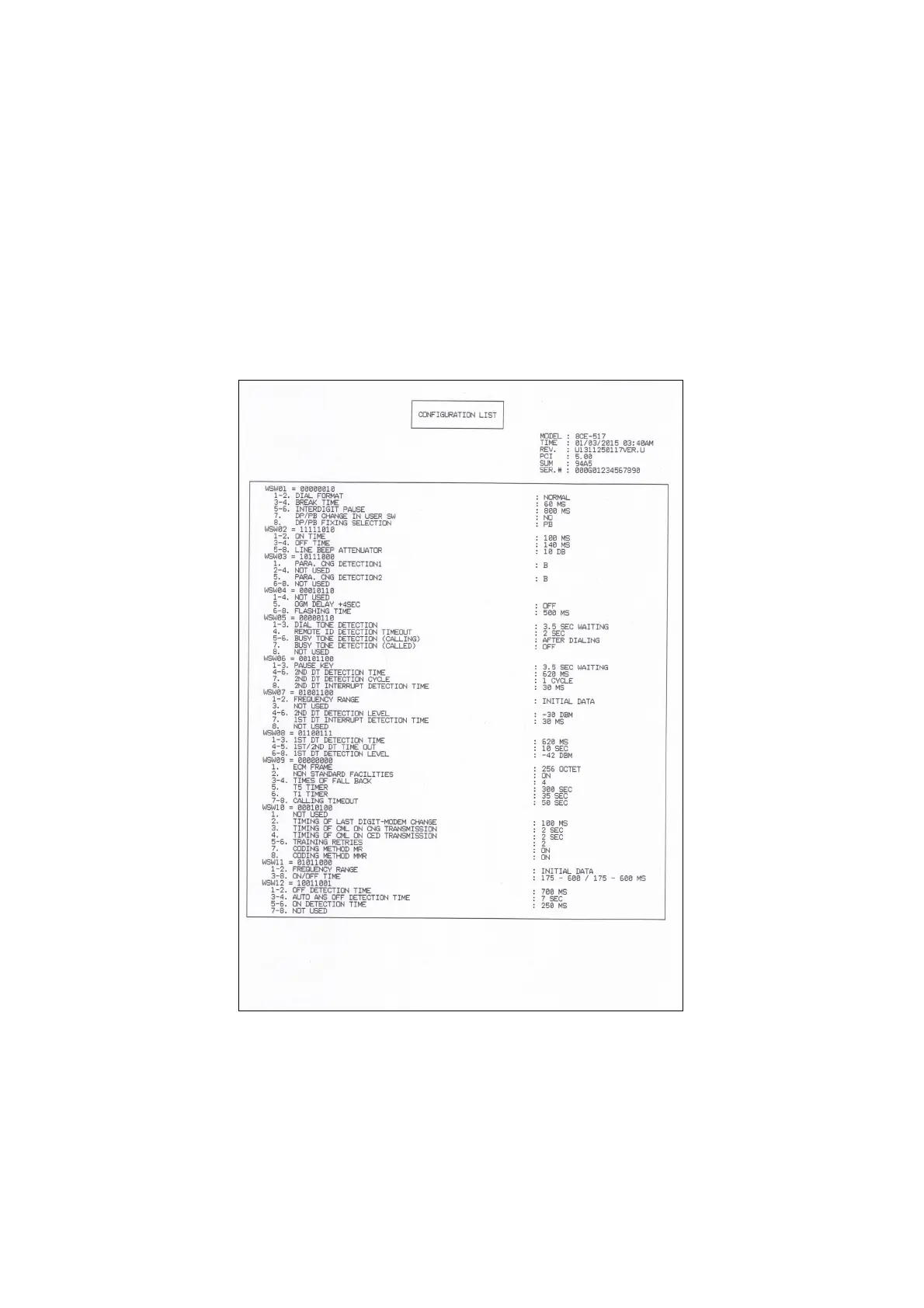

(2) “PRINTING” is displayed on the LCD and the CONFIGURATION LIST (see the figure
below) is printed.
(3) When printing is finished, the machine returns to the initial state of the maintenance
mode.
Fig. 5-3
