Brother MFC-L8650CDW

To Next Page

To Previous Page

7-7

Confidential

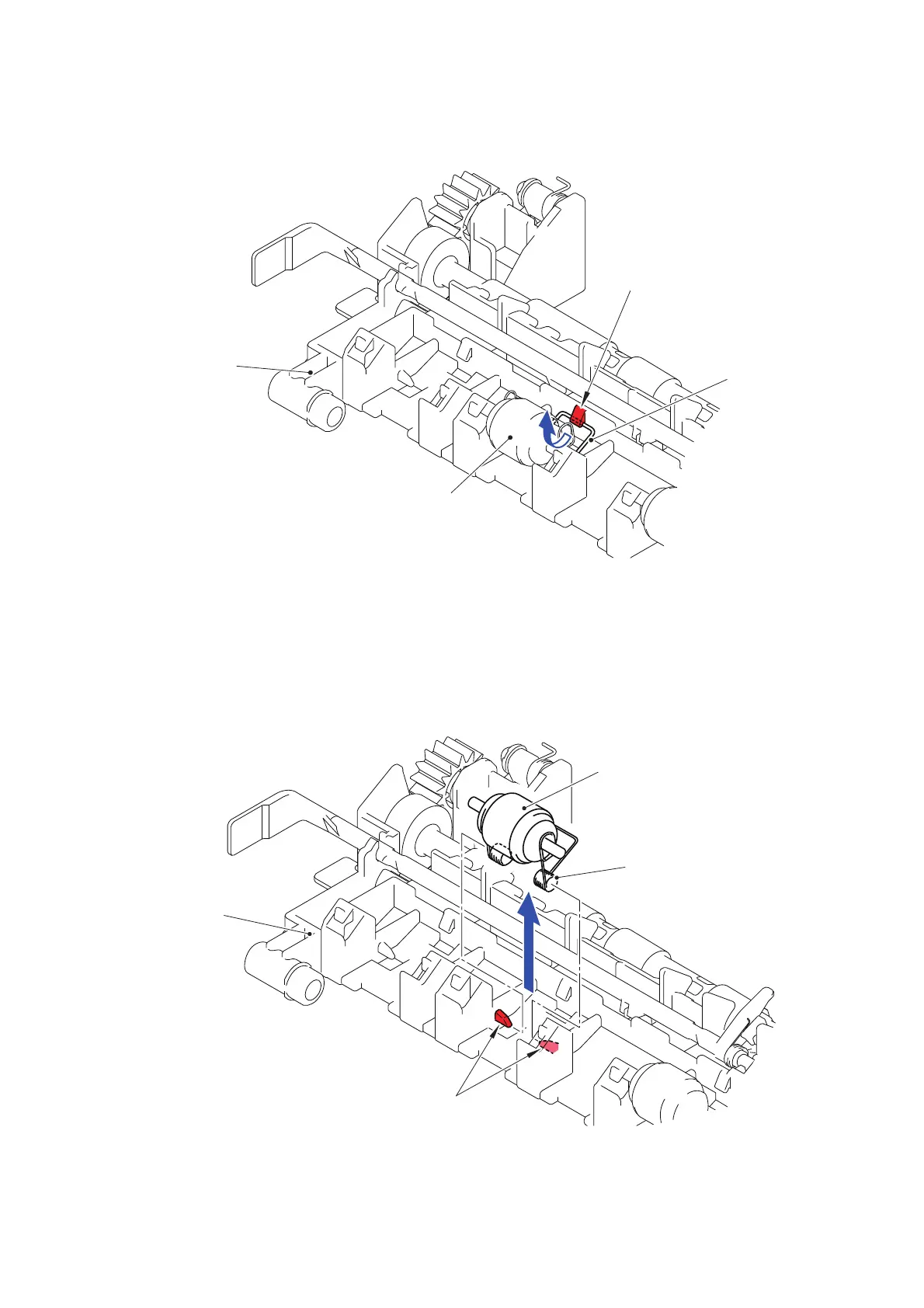

(10) Remove the Cleaner roller spring from the Hook of the Fuser cover ASSY.

Fig. 7-9

(11) Remove the Cleaner roller spring from the two Pins of the Fuser cover ASSY.

Remove the Cleaner pinch roller S ASSY and Cleaner roller spring from the Fuser cover

ASSY.

Fig. 7-10

Cleaner

Hook

Cleaner pinch roller S ASSY

Fuser cover ASSY

roller spring

Cleaner roller spring

Fuser cover ASSY

Cleaner pinch roller S ASSY
