7-11

Confidential

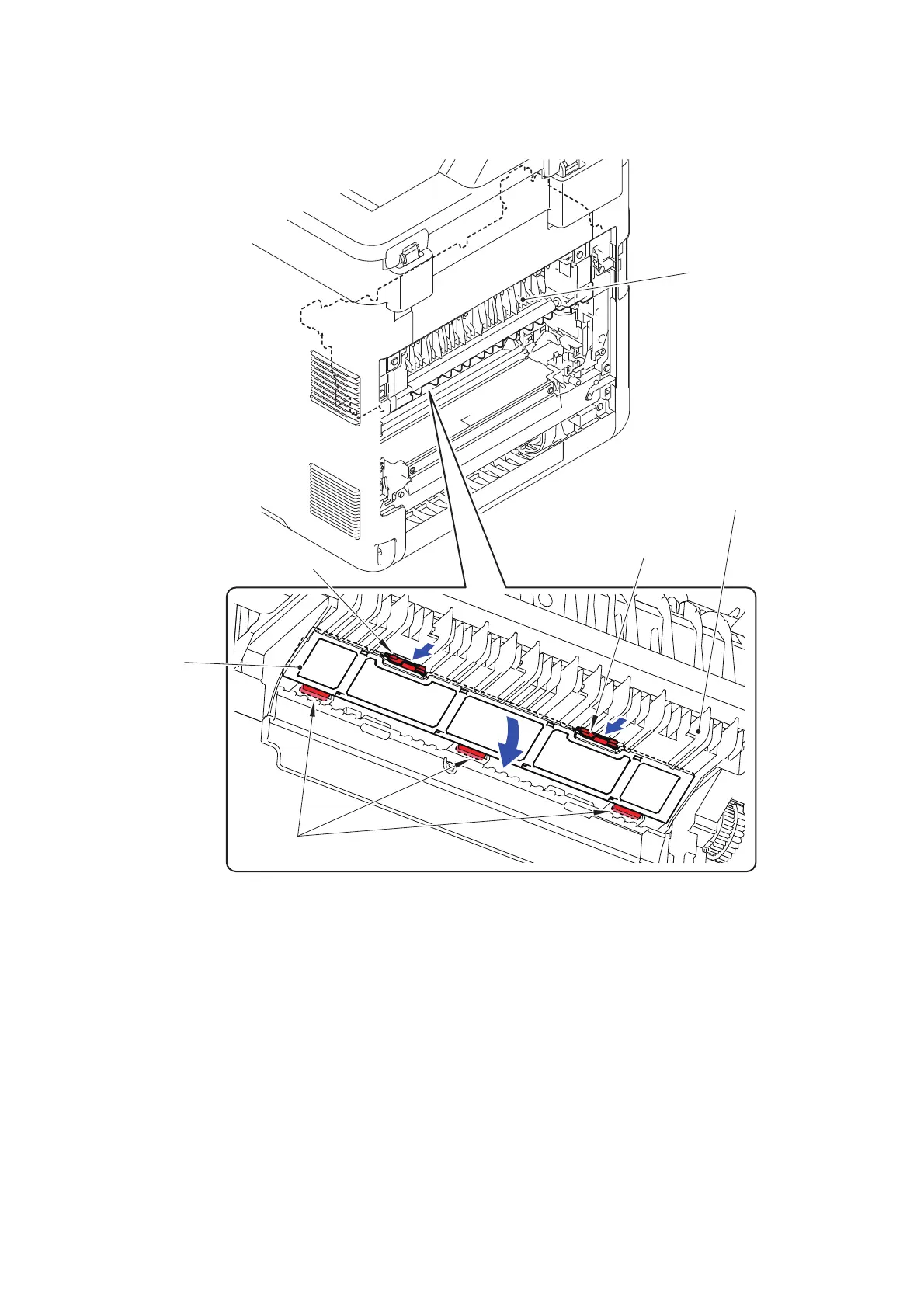

(19) Release the five Hooks and remove the Toner filter ASSY from the Paper eject ASSY.

Fig. 7-17

(20) After replacing the Fuser unit, reset the counter. (Refer to “1.3.37 Reset counters for parts

(Function code 88)” in Chapter 5.)

Toner filter

Hook

Paper eject ASSY

ASSY

Paper eject ASSY
