7-16
Confidential
■ A4 model

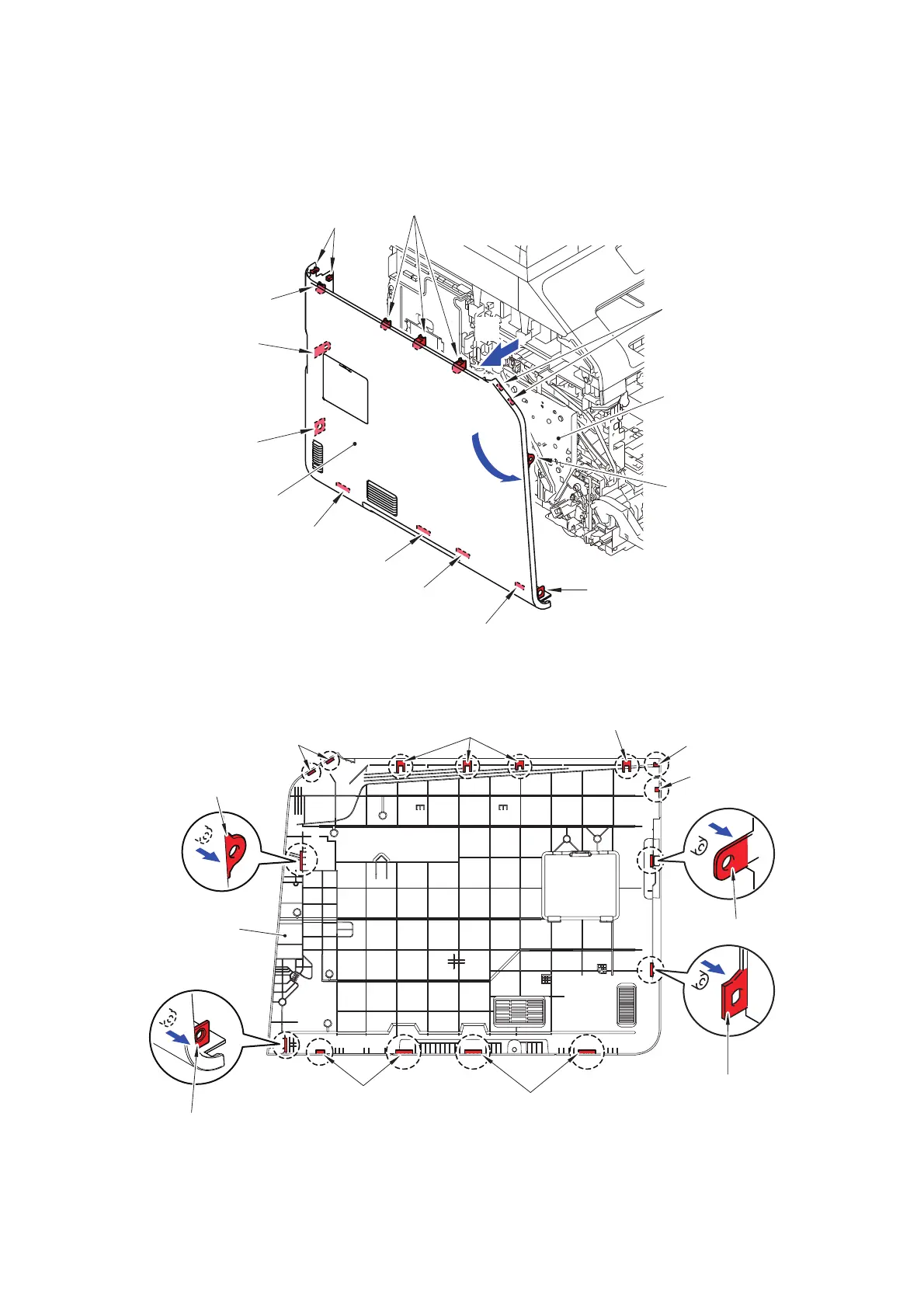

(9) Release the Hooks 1 to 8 in numerical order. Move the Side cover L in the direction of the
arrow 9a and release the other Hooks and remove Side cover L from the Main body.
Fig. 7-25
* Inside of Side cover L
Fig. 7-26
Hook 1
Hook 2
Hook 3
Hook 4
Hook 5
Hook 6
Hook 7
Hook 8
Hook
9a
9b
<Front side>
Main body
Hook
Hook
Hook
Side cover L
Hook
Hook
Hook
Hook
Hook
Hook
<Front side>
<Back side>
Hook
Hook
Hook
Hook
Hook
Side cover L
