5-8 Confidential
5.1.3 Document Cover (MFC410CN/215C/210C and DCP315CN/310CN/115C/117C/110C)
For the MFC620CN/425CN/420CN/DCP120C and FAX2440C, remove the automatic document
feeder (ADF) & document cover ASSY in Section 5.1.5 after separating the scanner cover from the
machine in Section 5.1.4.
Do not remove the document cover in the disassembly jobs except when replacing it. Performing
disassembly jobs with the document cover being set prevents the scanner glass from getting
scratched or damaged.

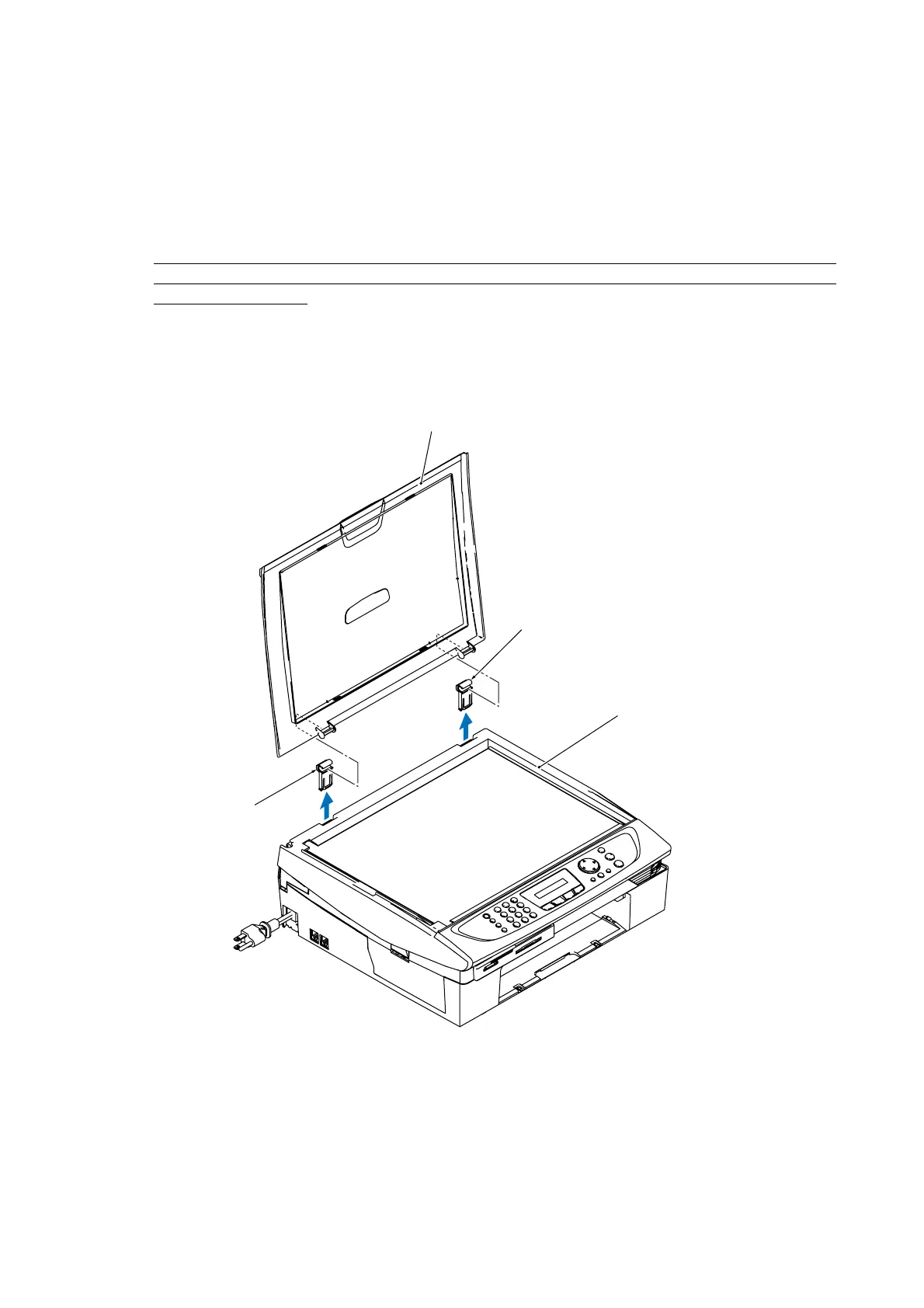

(1) Turn the document cover upright and lift it up and off.
(2) Remove the two hinges from the document cover.
Scanner cover
(Scanner unit)
Document cover
Hinge
Hinge
To Next Page
