8-37 Confidential
8.5.15 Margin Adjustment in Near-edge Printing (Function code 66)
îš„ Function
This function allows you to adjust the left and right margins for near-edge printing. You print out a
set of margin check patterns, measure the margins, and enter the correction values.
îš„ Operating Procedure
(1) Switch on your PC.
(2) Place the machine in the maintenance mode.
(3) Connect the machine to your PC using the USB cable.
(4) On the PC, run "FILEDG32.exe" in the folder created in Section 6.1.1.

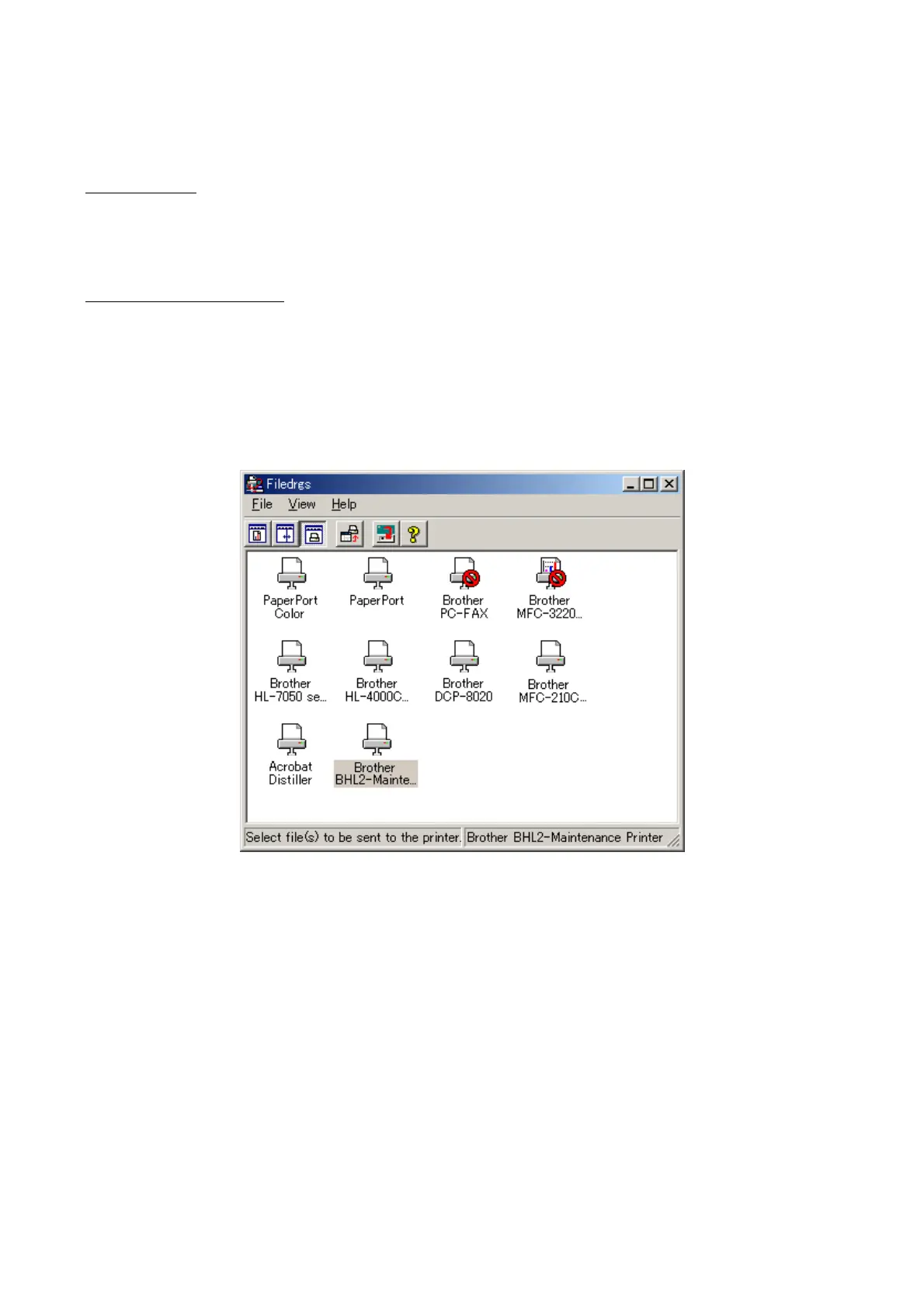

The Filedrgs window appears as shown below.
(5) Drag and drop the "EDGE_CHECK.PRN" onto the BHL2-Maintenance Printer icon in the
Filedrgs window shown above.
The machine displays the "RECEIVING DATA" on the LCD and prints out the margin check
pattern (see page 8-39 for a sample printout).
(6) Measure the left and right margins on the printout.
(Example) Left: 1.0 mm, Right: 1.3 mm
If both margins are within the range from 0.9 to 1.1 mm, no adjustment is required.
To Next Page
