5-24
Confidential

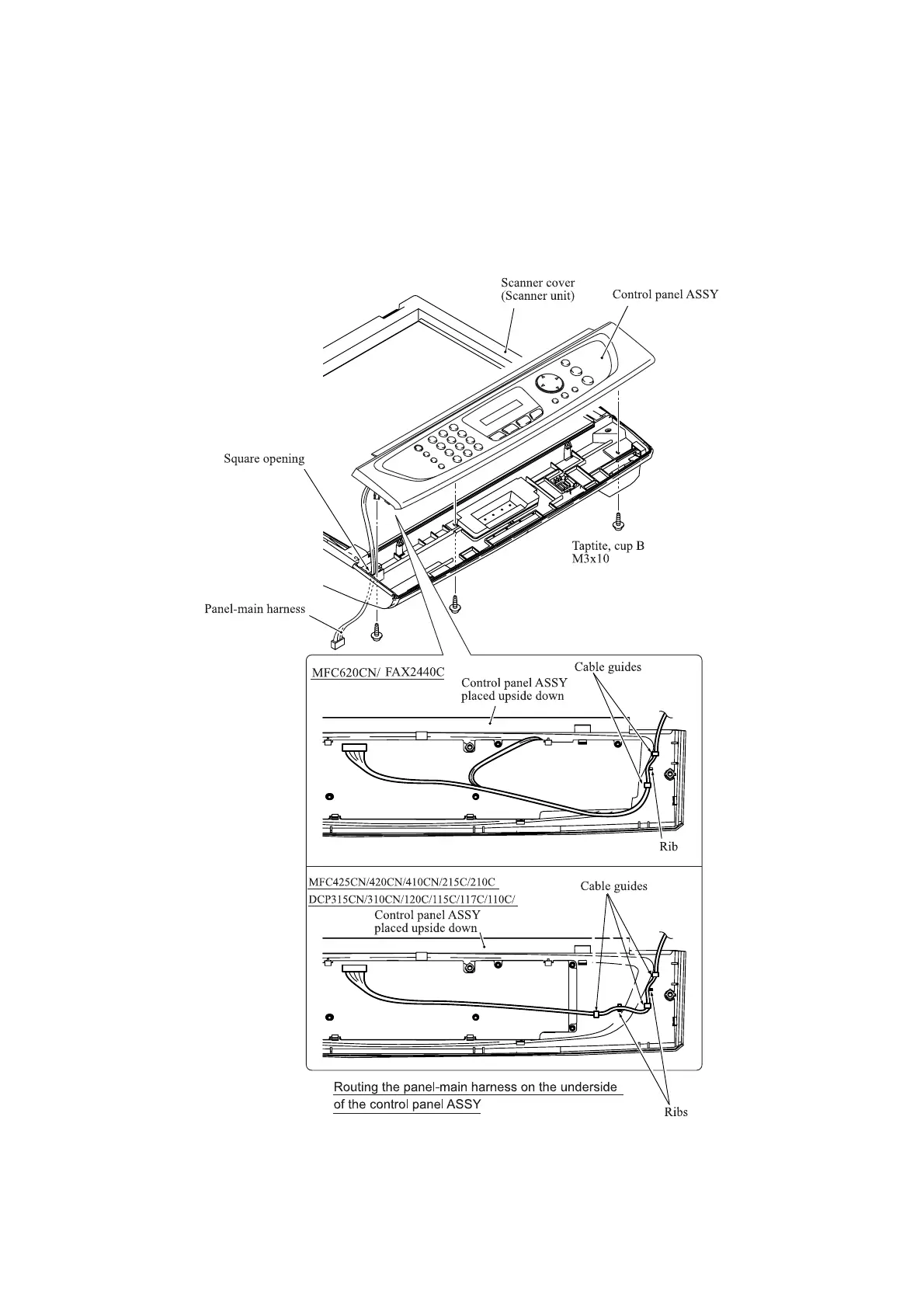

5.1.6
Control Panel ASSY
(1)
Turn the scanner cover (scanner unit) upside do
wn, push the left side outwards, and take out
the panel-main harness.
(2)
Remove the three screws from the underside of the scanner cover.
(3)
Pull up the rear end of the control pane
l ASSY and take it off the scanner cover.
