GEARCASE – COUNTER ROTATION
SHIFTER, BEARING AND SEAL SERVICING
Wrap the housing with a sho p cloth to catch ball
and sp ring. Pull the shif ter de tent straig ht ou t of
the housing.
Remove the detent ball and spring.
Remove needle bearings from bearing housing for
cleaning and inspection.
Shift Housing Assembly
IMPORTANT: Clean and inspect all parts before
beginning assembly p rocedures. Replace an y
damaged parts.
Lightly coat the detent ball and spring with Needle
Bearing grease. In sert the spring in th e ho using,
then the ball.
Insert shif ter de tent into the housing a s shown,
while depressing the ball and spring with a suit-
able tool. Once the detent is past the ball, remove
the tool and position detent to engage NEUTRAL.
Thoroughly grease 25 needle bearings wit h Nee-
dle Bearing grease and place in the bearing case.
Rest the cradle a nd shif t lever on t he shif t shaf t
and insert through the front side of the shift hous-
ing.

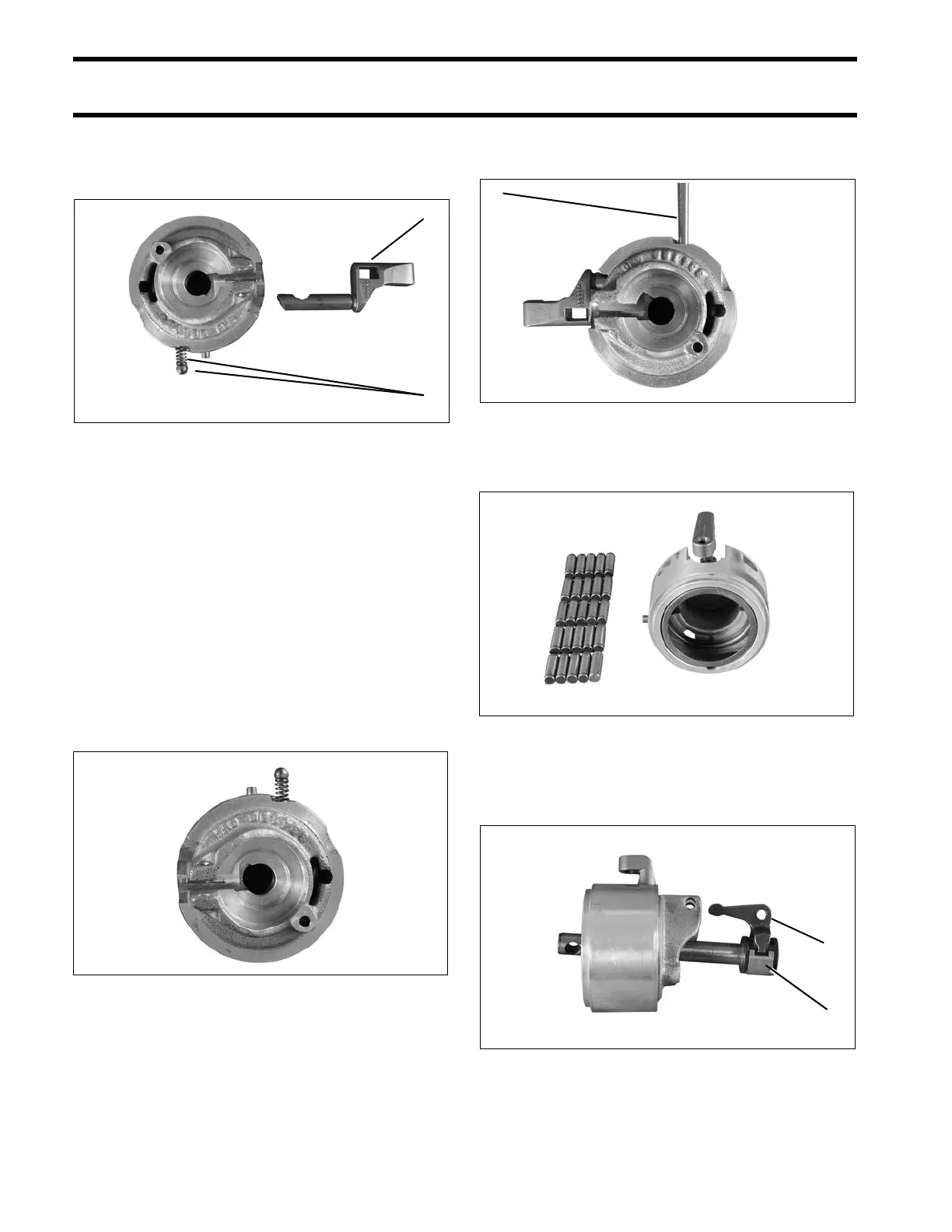

1. Ball and spring
2. Shifter detent
006932
006933
1. Punch 006934
006901
1. Cradle
2. Shift lever
006860
To Next Page
