GEARCASE – COUNTER ROTATION
SHIFTER, BEARING AND SEAL SERVICING
13
Install a rms of shif t lever into de tent slot s. Align
the pivot holes and insert the retaining pin. Push
shifter detent down.
Inspect clu tch shaf t detent balls, ret ainer and
spring. These p arts should no t require removal
under normal servicing.
If the se p arts are dama ged or removed, a new
service kit should be installed. Refer to parts cata-
log for kit part number.
Coat thrust bearing and thrust washer with Needle
Bearing grease. Place the bearing on the back of
the gear. Set the washer on top of the thrust bear-
ing. Insert the ge ar, bearing, and washer into th e
bearing housing.
Bearing and washer must be
installed in the correct order.
Align holes in the clutch dog with slot in the pro-
peller shaft. Install the clutch dog on the shaft with
"PROP END" facing rear of the shaft.
The clutch dog is not symmetrical.
If inst alled ba ckward, it will no t fully enga ge
and will immediately damage itself and the
gears.

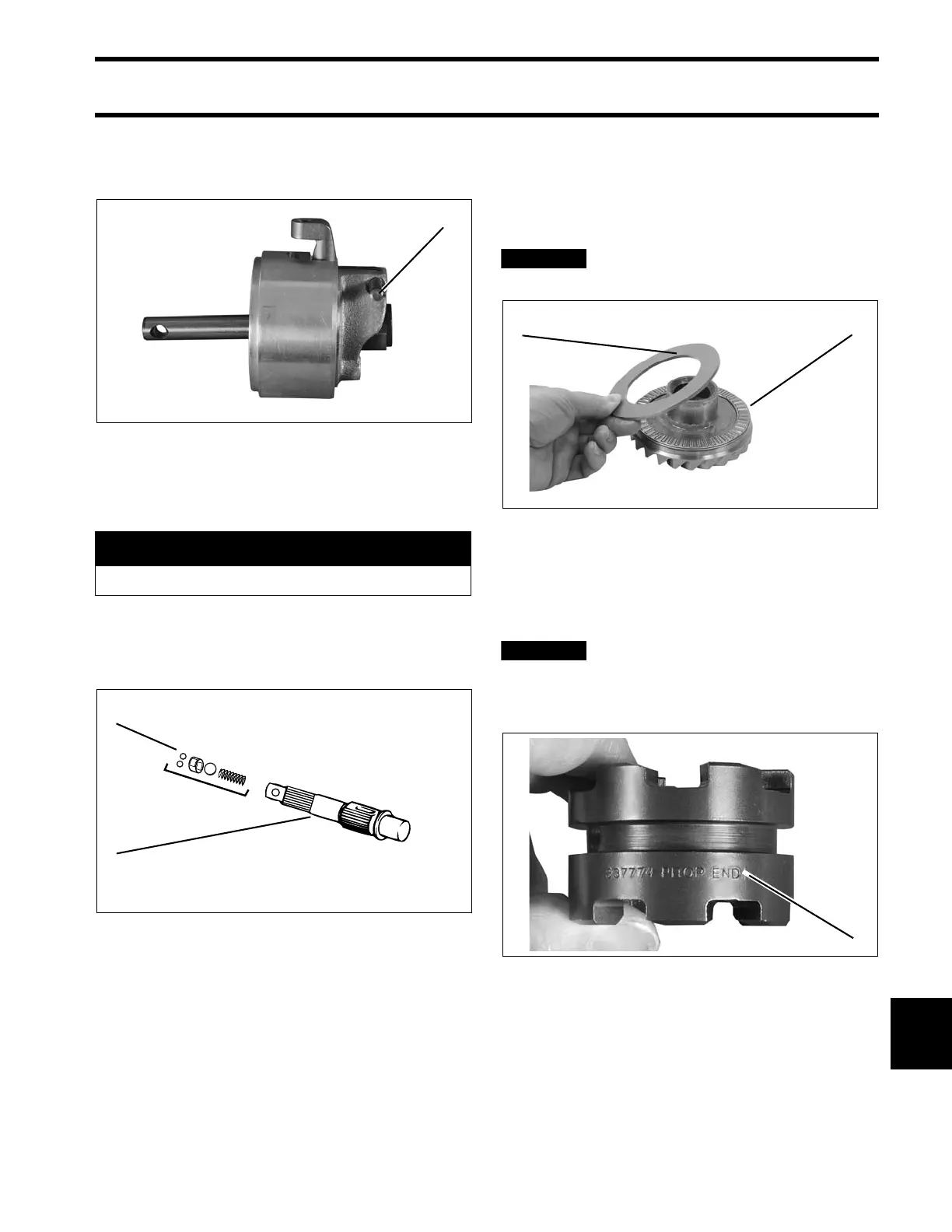

1. Pin, shift lever 006861
A WARNING
Wear safety glasses to avoid injury.
1. Clutch Shaft Retainer Kit
2. Clutch Shaft
0000
1. Thrust bearing
2. Thrust washer
006905
1. “PROP END” 006906
