4.1.6 Delimitation
This operation manual describes the safe handling with the Inductive Charging System in all phases of life. BRUSA
Elektronik AG accepts no liability for the incomplete passing on of information from this document, in particular to
those persons from the target group defined in chapter 4.1.1 and any damage resulting therefrom.

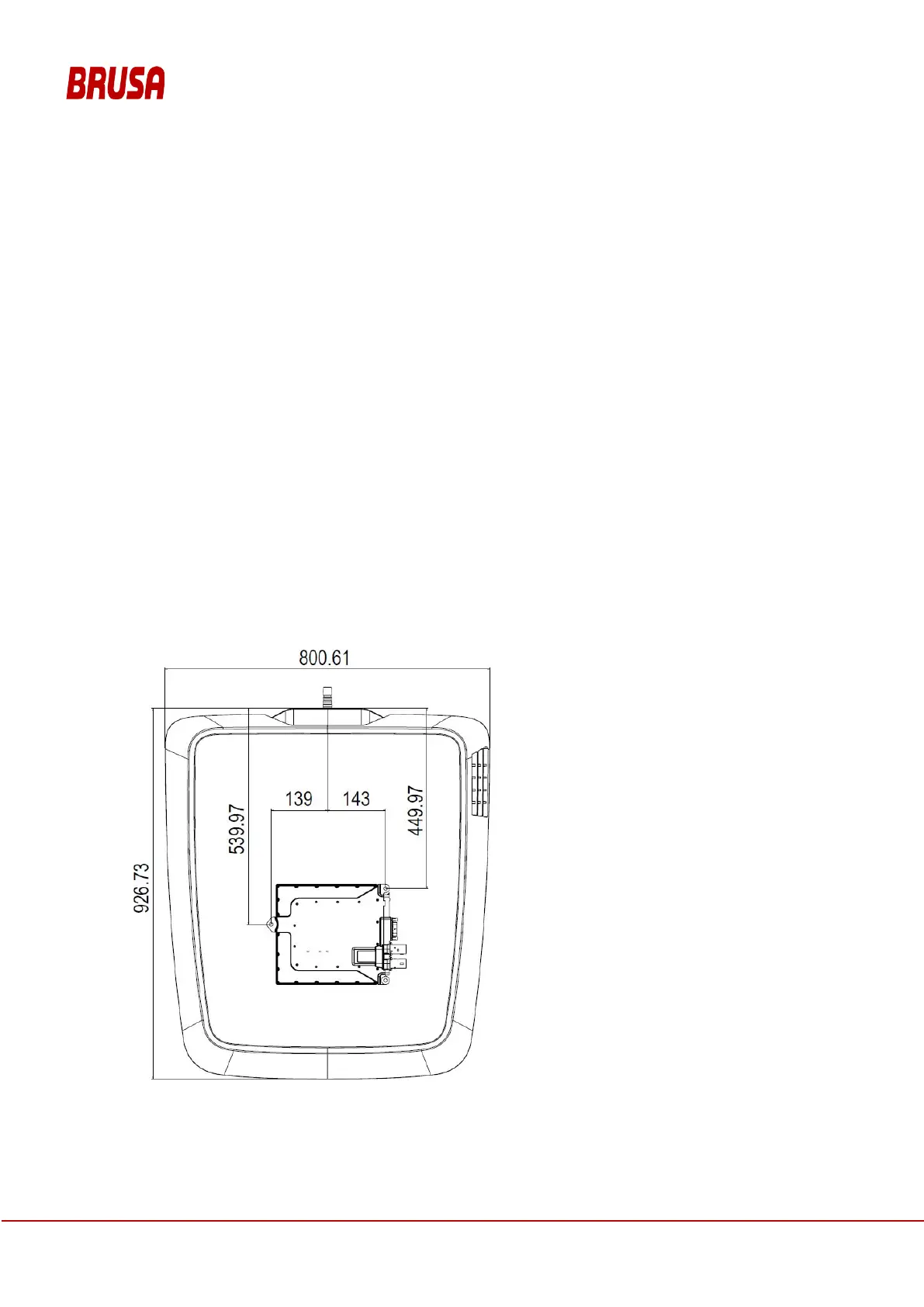

4.2 Functionality
The ICS consists of two separate devices. The Ground Pad Module (GPM) thereby forms that part connected to
the power supply network, which transmits the energy to the Car Pad Module (CPM) integrated in the vehicle by
means of magnetic induction. The communication between GPM and CPM is automated and takes place via
WLAN.
Basically the charging process takes place in these steps:
• The vehicle parks over the GPM with the help of the positioning function with optimal coverage between
GPM and CPM.
• The charging process is started automatically from the vehicle and also ended automatically.
• After the charging process the battery is charged according to the charging time and the charging
efficiency. The vehicle is ready to use.
Operation Manual
Inductive Charging System
ICS115
14
