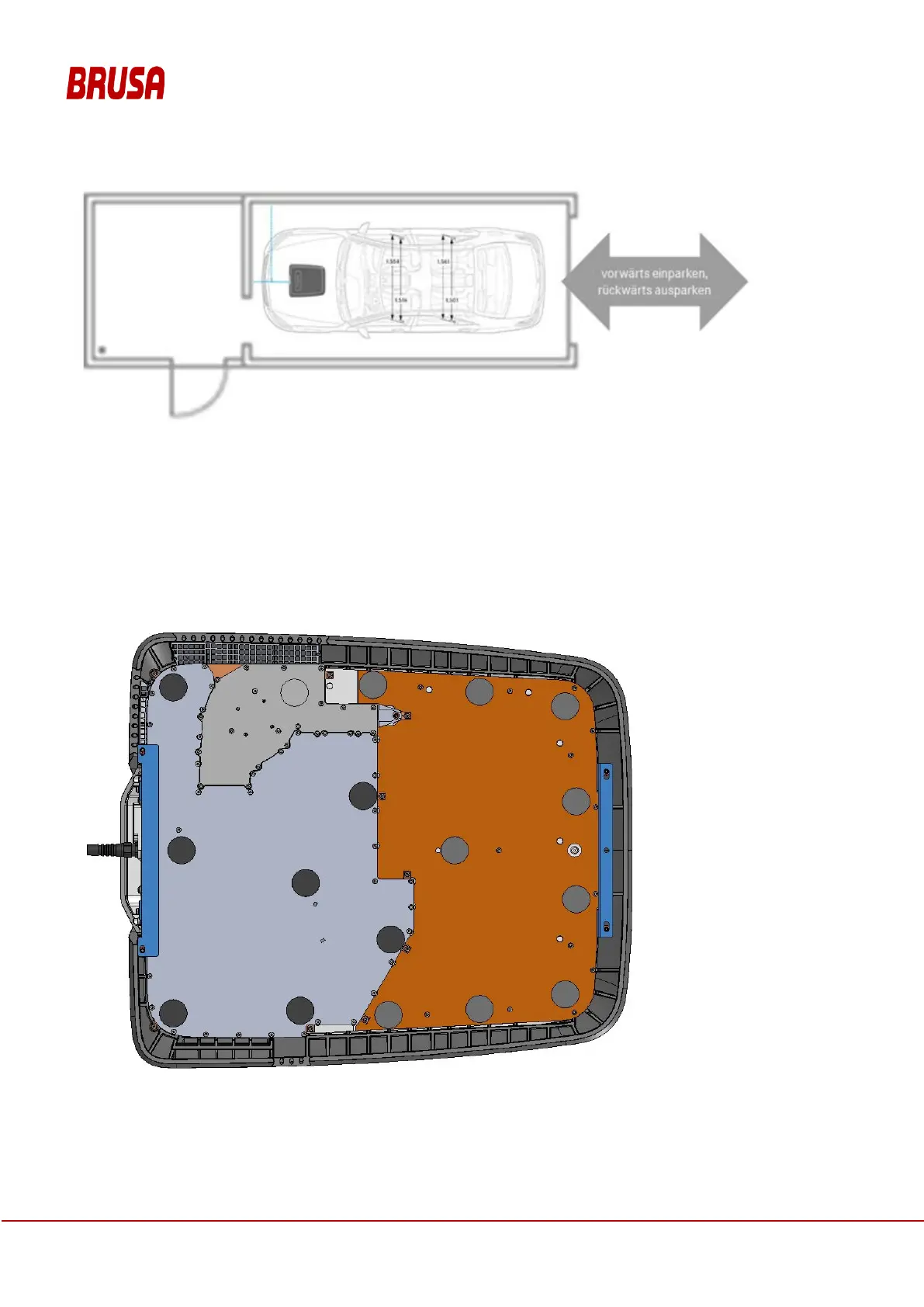

Figure 14: Recommendation for cable laying (blue) with desired forward parking
12.5.4 Optional Installation of the GPM with Mounting Rails
Optionally the GPM can be fixed against shifting with the help of mounting rails. This prevents the GPM from
shifting.
Figure 15: Bottom of the GPM with mounting rails (blue). The right-hand rail snaps into recesses of the GPM-housing. The left-hand rail
(on the cable bushing) is screwed tight at the side of the service cover.
Operation Manual
Inductive Charging System
ICS115
48
