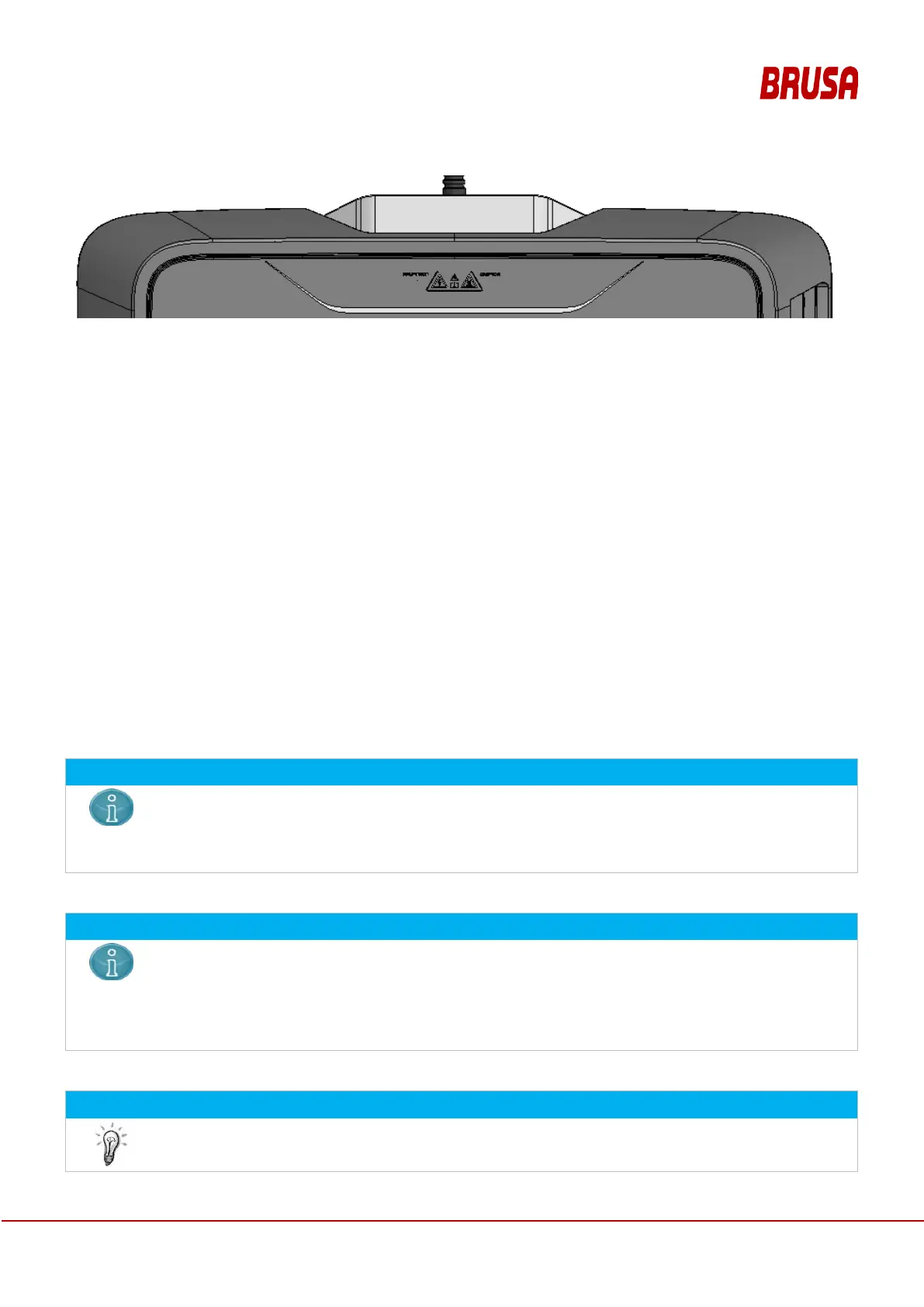

Figure 2: Warning notice (black/white) on GPM top side
6 Commissioning and Use of the ICS
The commissioning of the ICS assumes, that there is a suitable electrical connection available. The CPM is
mounted on the vehicle. The GPM is installed by the service of the vehicle manufacturer at the installation location.
The steps necessary for this are described in the annex. After the installation of the GPM it is commissioned by the
service and thereby its functionality is explained.
6.1 Installation of the GPM and Commissioning
The installation of the CPM is the responsibility of the vehicle manufacturer or his service, see chapter 12.7.6. The
installation of the GPM may only be carried out by a qualified electrician. The commissioning should be undertaken
together with the user, in order to familiarize him with the function of the ICS, in particular with the LED flashing
patterns.
NOTICE
The installation of the GPM may only be carried out by a qualified electrician. In particular, country-
specific regulations for electrical lines and installations are to be observed. For America the National
Electrical Code NFPA 70 is to be complied with, and in Canada the Canadian Electrical Code CSA
C22.1.
NOTICE
The GPM must be installed flat and level on the floor. A sinking of the GPM into the floor is not
permitted. Protect the mains connection cable with suitable floor mounted ducting resistant to over-
rolling. Due to its overall height, the GPM represents a tripping hazard. Therefore do not install the
GPM on footpaths or routes that you use frequently.
Ensure for sufficient lighting during installation, operation and deinstallation.
INFORMATION
Visually inspect the packaging material and in particular the GPM itself for damage before
installation. Every GPM undergoes a strict quality- and function control before delivery. However we
27
