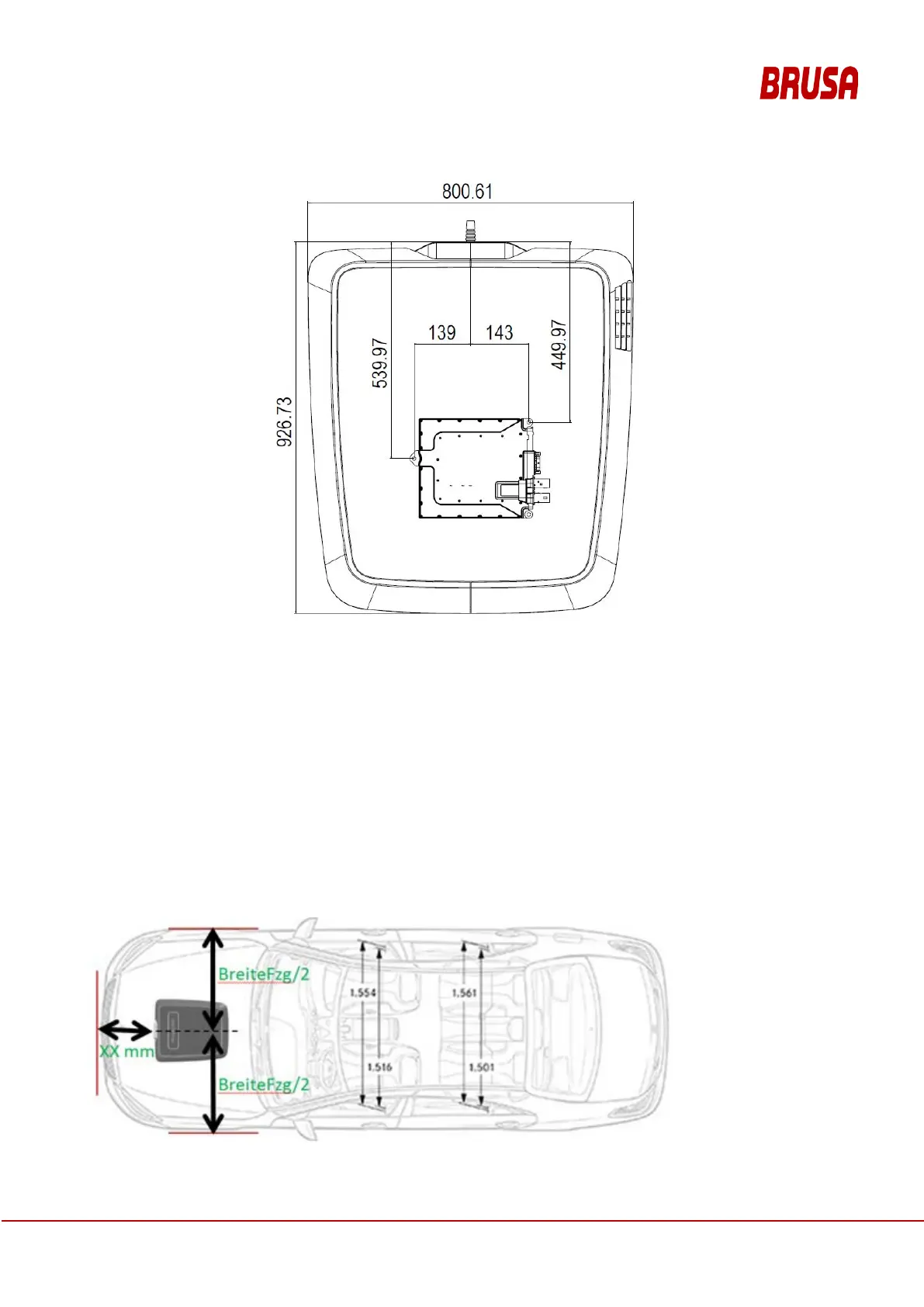

Figure 12: Alignment of GPM to the CPM, as should be taken into consideration during the installation
1. For the alignment of the GPM to the CPM, at best proceed as follows: During the installation of the GPM
(Ground Pad Module) the vehicle must be present.
2. Establish exactly the required parking position, at which the vehicle should later be charged.
a. Park the vehicle in the intended position, so that the charging later in this position is ensured.
3. Mark the planned position on the floor according to the positioning sketch. This step decides about the
functionality of the charging system, therefore proceed exactly!
a. Set the steering straight.
b. Mark on the floor the position and middle of the front license plate holder.
c. Mark on the floor the position of the outer edges of the front wheels.
Figure 13 Example for positioning the GPM with desired forward parking
47
Operation Manual
Inductive Charging System
ICS115
