7.3.1.5 Status: Charging / Energy Transmission
If the vehicle (with CPM) is in the optimal parking position, then the charging process is started automatically. The
energy transmission from GPM to the vehicle is signaled by means of LED with this flashing pattern.
off
on
2,5s
2,5s2,5s
2,5s
2,5s 2,5s

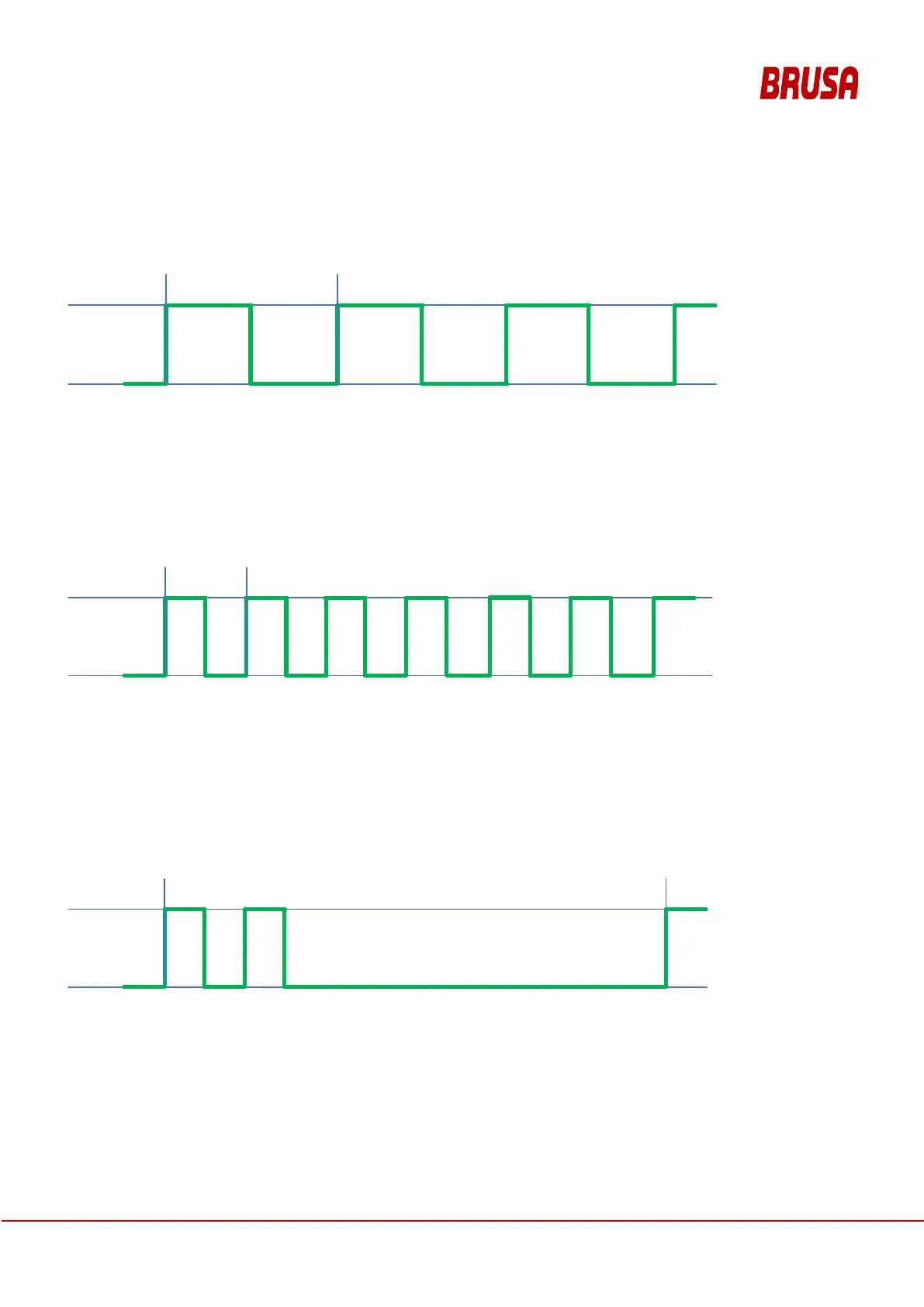

Figure 7: Flashing pattern in status Charging / Energy Transmission
7.3.1.6 Status: General Error
With an error the LED flashes with this pattern. Attempt to rectify the error as described in 7.6 Troubleshooting by
the User.
off
on
0,25s
0,25s 0,25s
0,25s
0,25s
0,25s 0,25s
0,25s
0,25s
0,25s 0,25s
0,25s
0,25s
Figure 8: Flashing pattern in status General Error
7.3.1.7 Status: Foreign Object Detected
If a foreign object is detected during charging, then the charging process is interrupted for safety reasons. The LED
signals this with this pattern. In this case check the GPM and make sure, that the GPM is free of foreign objects of
any kind.
off
on
0,25s
0,25s
0,25s
4s
Figure 9: Flashing pattern in status Foreign Object Detected
