63
6.4.9.3. Zone Duct Assessment
This screen shows the results from the previous duct assessment. The
duct assessment is performed at initial start-up and at 1 P.M. or the
installer selected time each day. If another duct assessment is desired, the
service technician should perform a re-install of the system.
NOTE: A Duct Assessment will automatically occur every 24 hours at
selected time to check system static and calibrate dampers.
Once the duct assessment is complete, touch DONE to return to the
ZONING CHECKOUT menu.
6.4.9.4. Sensor Type
This option shows a list of all zones with corresponding sensor types.

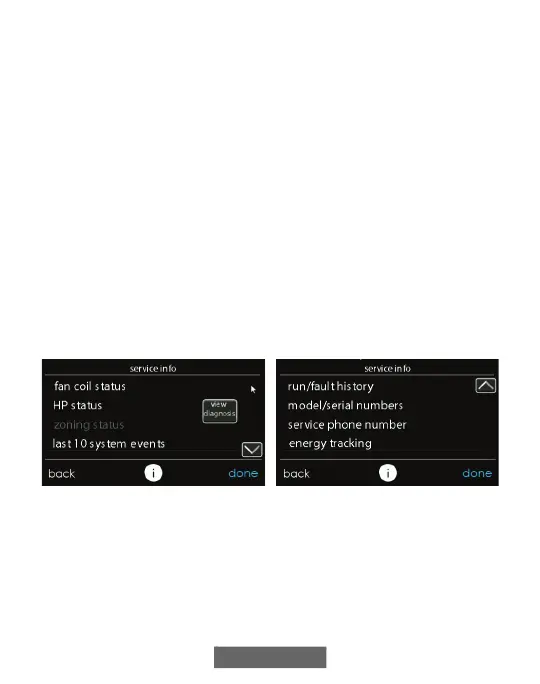

6.5. Service Information
The Service Info menu will only show the equipment installed in the
system. To enter this menu of options, touch SERVICE
INFORMATION.
A13123A
