8. Wiring Diagrams
A160107

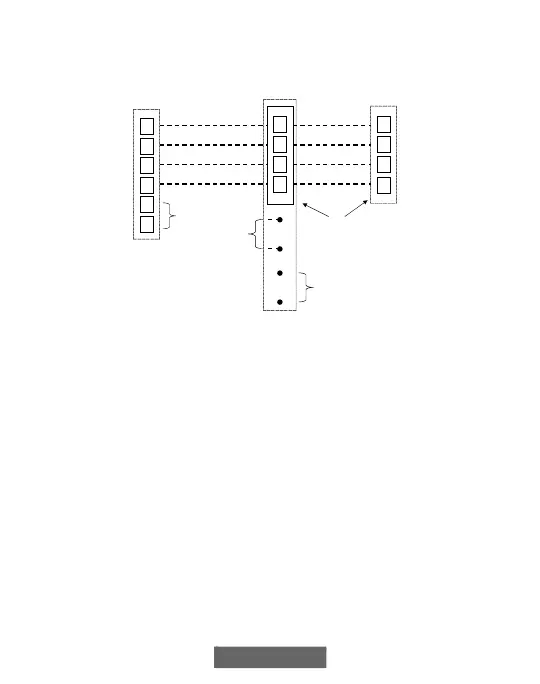

Universal Four-Wire Connection
A
B
C
D
A
B
C
D
User Interface
Green - Data A
Yellow - Data B
White - COM
Red - 24VAC
OAT
Optional Remote
Room Sensor
HUM
COM
24V
Humidifier
Connection
S2
S1
A
B
C
D
ABCD
Connections
Communicating
AC, HP or GHP*
Green
Yellow
White
Red
OAT
Sensor
(Optional)
Variable-Speed
Furnace/ Fan Coil
127(6RPHRXWGRRUXQLWVGRQRWUHTXLUHWKHk&lDQGk'lFRQQHFWLRQV
6HHRXWGRRUXQLW,QVWDOODWLRQ,QVWUXFWLRQV
127()RU633SURGXFWV$%&'FRQQHFWLRQEHWZHHQ,QGRRUDQG2XWGRRU
 FRQWUROERDUGVDUHSUHZLUHGDWWKHIDFWRU\
127()RUQHZ633LQVWDOODWLRQVLQZKLFKWKH2$76HQVRULVUHTXLUHG
SOHDVHUHIHUWRWKH633,QVWDOODWLRQ,QVWUXFWLRQV
