Bryant Evolution Connex Control SYSTXBBECC01-C User Manual

81
A12354

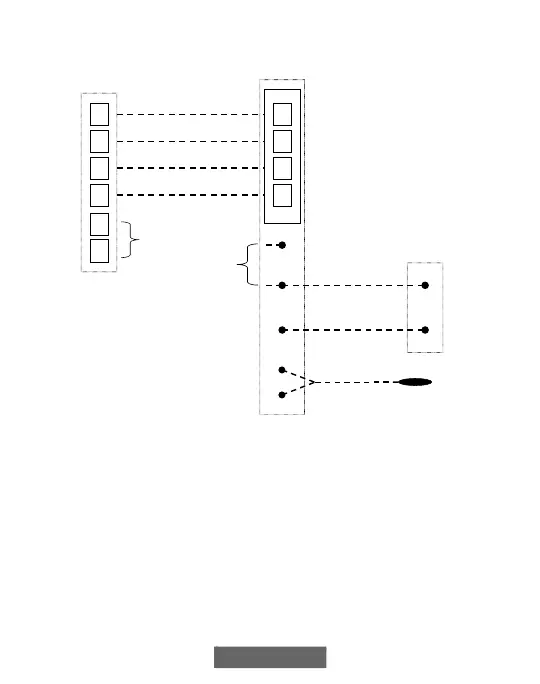

Connection Diagram for Furnace or FE Fan Coil
with
1-Stage Air Conditioning
A
B
C
D
A
B
C
D
C
Y
ABCD
Connection
User Interface
1-Spd.
Non-Communicating
AC
Green - Data A
Yellow - Data B
White - COM
Red - 24VAC
Optional Remote
Room Sensor
HUM
COM
24V
Humidifier
Connection
Y/Y2
S2
S1
OAT
OAT
Sensor
Variable-Speed
Furnace/Fan Coil
