Bryant Evolution Connex Control SYSTXBBECC01-C User Manual

85
A07149

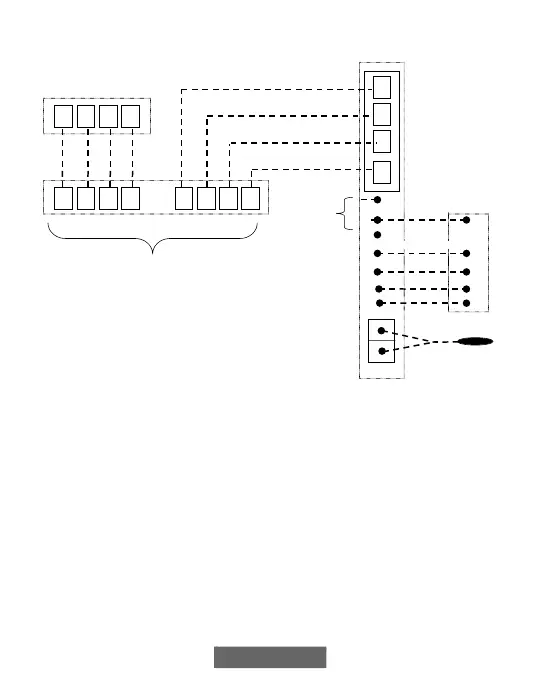

Zoning Connection Diagram for FE Fan Coil with
Non-communicating 1-Stage Heat Pump
A
B
C
D
Zone Control
User Interface &
Smart Sensor(s)
Green
Yellow
White
Red
A B C D A B C D
Damper
Control
module
A B C D
Variable-Speed
Fan Coil
1-Spd. HP
HUM
C
Y
W2
Y
O
C
R
O
R
W
OAT
OAT
Sensor
Humidifier
Connection
G
