13 Flue gas test
The flue gas test must only be carried out by a heating
contractor. It is carried out once a year during the annual
service.
The individual heating zones then pass their maximum
possible demand to the boiler. With the pumps switched
off, the boiler is brought as rapidly as possible to the
supply temperature required for the tests (current boiler
water temperature shown in display) and attempts are
then made to maintain this temperature without turning
the burner off while switching on additional consumers.
This has the effect of extending the test periods as long
as possible.
The ON/OFF switch on the control device must be ON.
"BRNR TEST" and the boiler water temperature appear
in the display.
After 30 minutes the control device reverts automatically
to the mode it was in prior to the test.
Interrupting the flue gas test

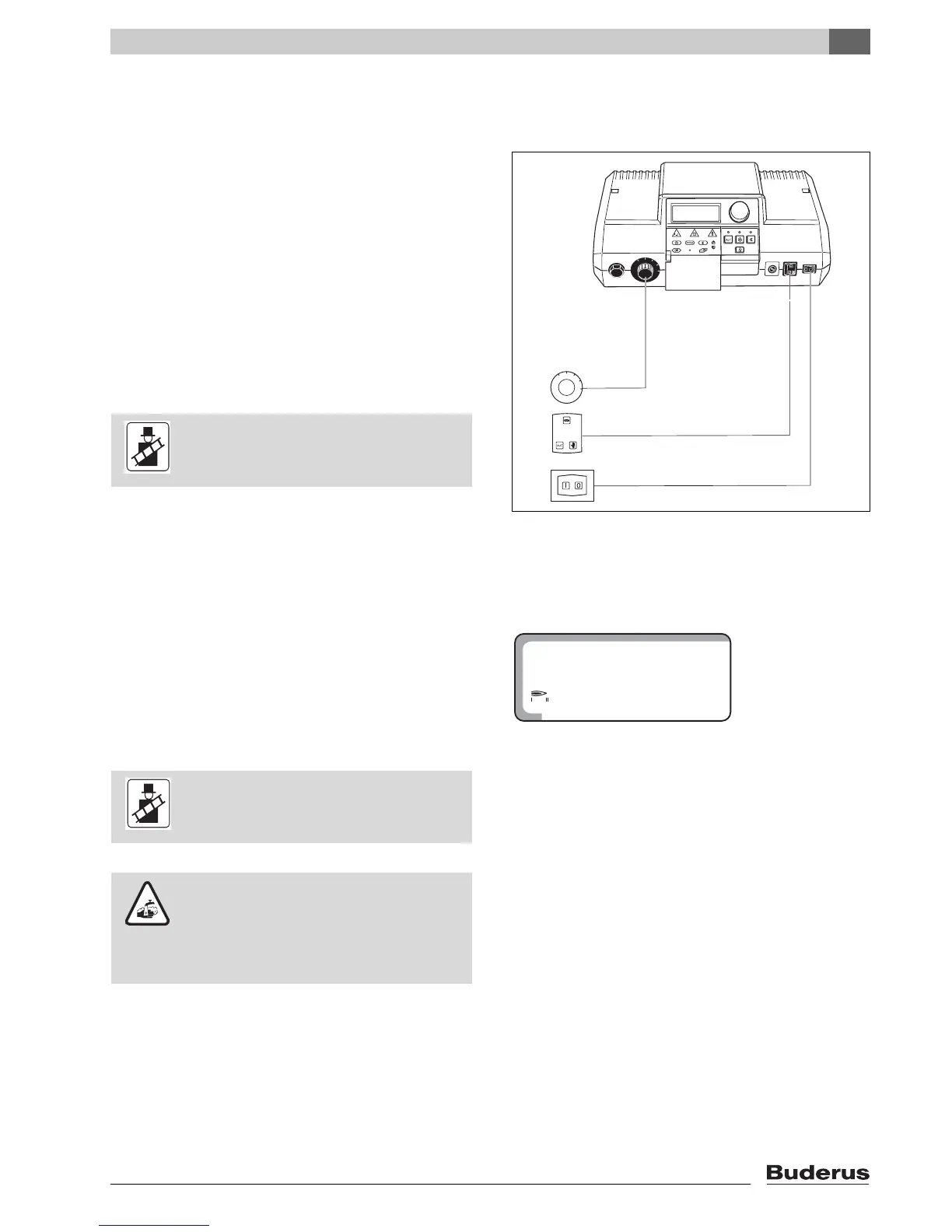

Fig. 18 Checking control settings
Pos. 1: Boiler water thermostat
Pos. 2: Emergency operation, heating and DHW switches
Pos. 3: ON/OFF switch
AUT
9
0
70
60
50
I 0
AUT
90
70
6
0
50
1
2
3
AUTOMATIC
11.15am
71
Push the "Flue gas test" button once and
hold down for 1 second.
140
BRNR TEST
°F
11.30am
6
Push the "Flue gas test" button again and
hold down for 1 second.
WARNING!
RISK OF SCALDING
Do not open any hot water tap without
mixing in cold water, if the DHW circuit of
your heating system is not equipped with a
thermostatic mixer!
