2-44 2003 Buell P3: Chassis
HOME
REMOVAL
1. Raise front wheel off floor.
2. Detach front brake caliper from rotor. See 2.11 FRONT
BRAKE CALIPER.
3. Remove front wheel. See 2.5 FRONT WHEEL.
4. Remove front fender. See 2.23 FENDERS.
5. See Figure 2-64. Loosen headlamp bracket screws.
6. See Figure 2-65. Loosen the large pinch screws on both
the upper and lower triple clamps.
7. See Figure 2-66. Remove front fork. Repeat procedure
for the other front fork.

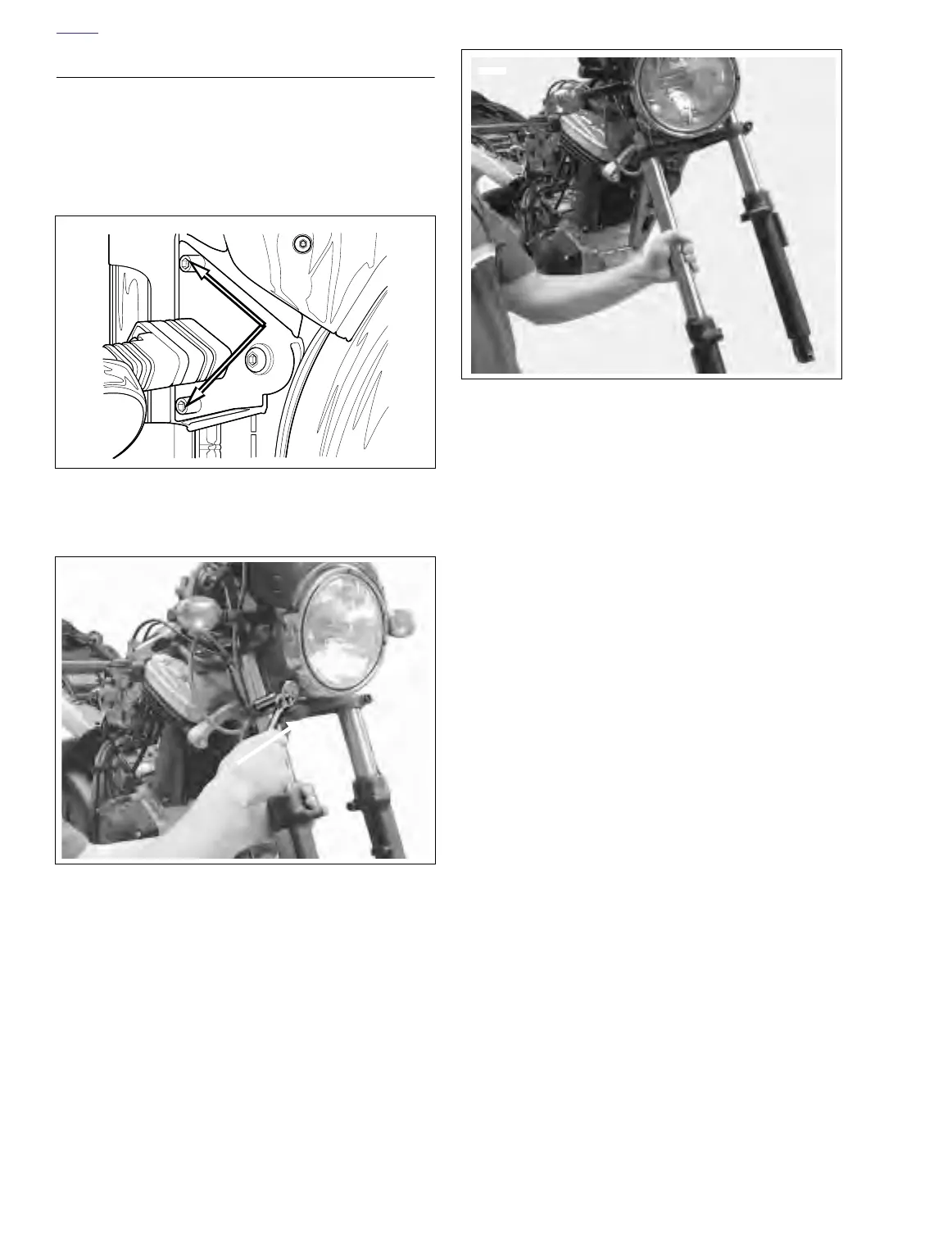

Figure 2-64. Headlamp Bracket Screws
Figure 2-65. Upper and Lower Triple Clamp Pinch Screws
a0065aSx
3765
Figure 2-66. Front Fork Removal
3766
