2-46 2003 Buell P3: Chassis
HOME
6. See Figure 2-71. Remove the fork oil by pumping the fork
leg and rod 8-10 times until the rod moves freely.
7. See Figure 2-72. Remove the center bolt (metric) from
the bottom of the fork tube.
8. See Figure 2-73. Remove the damper assembly, lock
piece and the rebound spring from the slider tube.

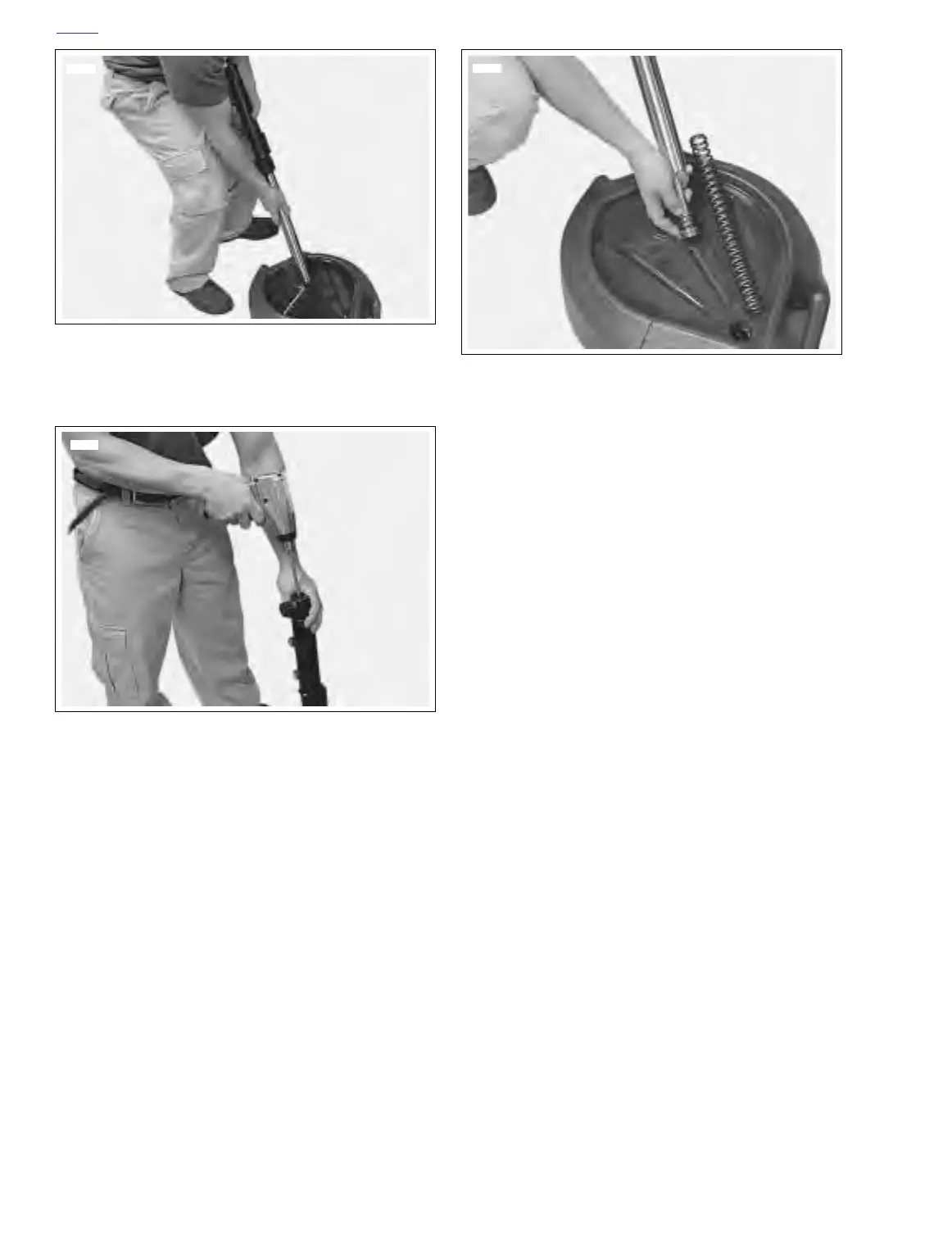

Figure 2-71. Pumping Fork Oil
Figure 2-72. Removing Center Bolt
3770
3771
Figure 2-73. Removing Damper
3772
