1. See Figure 2-95. Install fork tubes through upper and
lower triple clamps.
NOTE
When installing the front forks, use a screwdriver to pry apart
the triple clamps.
2. See Figure 2-96. Apply LOCTITE ANTI-SEIZE to the
threads of triple clamp pinch screws.
3. See Figure 2-97. Align and secure fork tubes.
a. Position fork tubes so that top of each slider tube is
flush with the top surface of upper triple clamp. Be
sure that top surface of fork is not below top surface
of upper triple clamp.
b. Tighten upper triple clamp pinch screws (at sliders)
to 13-16 ft-lbs (18-22 Nm).
c. Tighten lower triple clamp pinch screws to 22-29 ft-
lbs (30-39 Nm).
d. See Figure 2-98. Tighten headlamp brackets flush
against bottom of top triple clamp.
4. Install front fender. See 2.23 FENDERS.
5. Install front wheel. See 2.5 FRONT WHEEL.
6. Install front brake caliper. See 2.11 FRONT BRAKE
CALIPER.
7. Align headlamp. See 1.22 HEADLAMP.

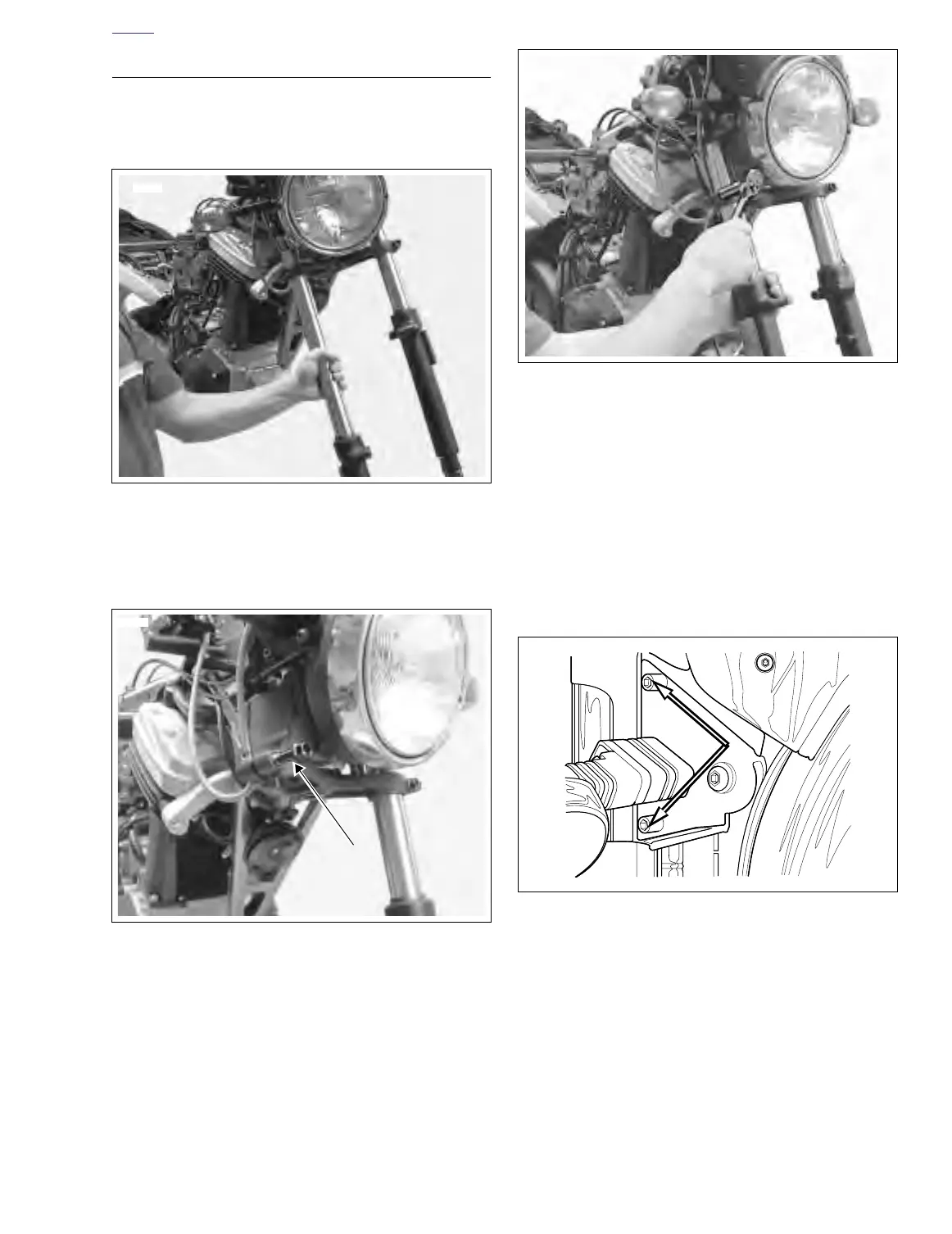

Figure 2-95. Installing Fork Tube
Figure 2-96. Location of Anti-Seize
on Triple Clamp Pinch Screws
3766
3777
Figure 2-97. Upper and Lower Triple Clamp Pinch Screws
Figure 2-98. Tighten Headlamp Bracket Screws
